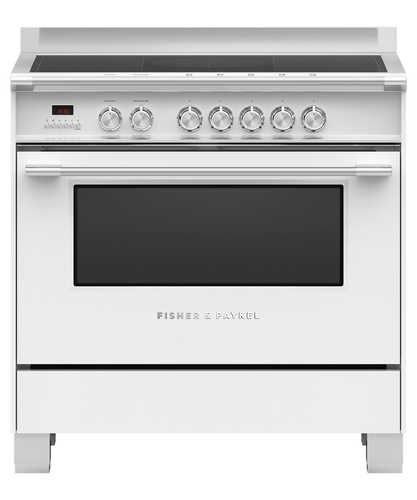

OR90SCI4W1
90cm Series 7
Classic 5 Zone Induction Cooker
SmartZone
- Classic
Heritage styling with contemporary performance in the large convection oven and induction cooktop, with SmartZone capability.
- Finish
- White
$ 6,599.00
Please enter a postcode to check for stock & delivery information.
Please enter a postcode to check for stock & delivery information.
90cm Series 7
Classic 5 Zone Induction Cooker
SmartZone
- Five cooking zones, with the ability to pair zones to create SmartZones
- Convection oven with 140L total capacity and nine oven functions including Pastry Bake with pizza mode and rapid proof for making bread
- Non-tip full-extension shelves for safe removal of hot dishes
Height
898 - 946mm
Width
897mm
Depth
600mm
PERFECT RESULTS
Multi-Shelf Cooking
Our AeroTech™ system circulates air evenly throughout the entire oven so dishes on the top shelf turn out just as perfectly as food cooking on the bottom shelf.
BUILT TO LAST

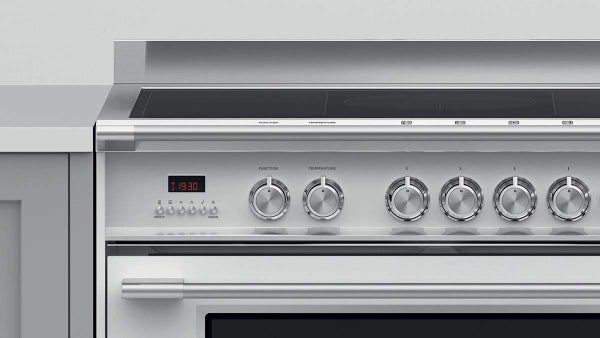

Quality And Durability
Every detail has been carefully crafted. The solid, perfectly balanced soft-close door, durable cooktop and glowing halo dials all add up to an exceptional, premium range.
PERFECT RESULTS

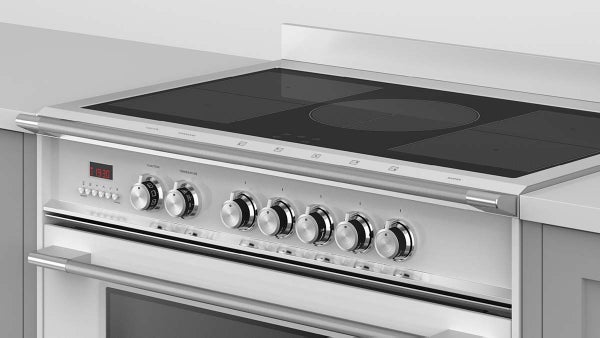

Power & Control
Instant and immediate control from the highest to the gentlest heat. The finely tuned cooktop controls let you sear, stir fry or simmer a delicate sauce to perfection.
PERFECT RESULTS
Even Heat
Accurate, electronically-controlled oven heat ensures a great result every time.
BEAUTIFUL TO USE
Large Capacity Oven
The generous 140L total capacity oven gives you plenty of space to cook multiple dishes at once.
BEAUTIFUL TO USE
Large, Flexible Cooking Area
SmartZone links two cooking zones and controls them as one, giving you the flexibility to use large pans and griddles and easily handle bigger food items such as a whole fish.
Specifications
- Height
- 898 - 946mm
- Width
- 897mm
- Depth
- 600mm
Accessories (included)
| Accessories (included) Attributes | Value |
|---|---|
| Chromed shelf runners | 1 set |
| Flat wire shelf | 1 |
| Full extension sliding shelves | 1 set (part 578744) |
| Full extension telescopic shelves | 1 set (part 578744) |
| Grill rack | |
| Roasting dish | 1 |
| Step down wire shelf |
Accessories (sold separately)
| Accessories (sold separately) Attributes | Value |
|---|---|
| Kick strip, black (optional) | KICKOR90B1 |
| Kick strip, stainless steel (optional) | KICKOR90X1 |
| Kick strip, white (optional) | KICKOR90W1 |
Capacity
| Capacity Attributes | Value |
|---|---|
| Shelf positions | 6 |
| Shelf positions (main oven) | 6 |
| Total capacity | 140L |
| Usable capacity (main oven) | 121L |
Cleaning
| Cleaning Attributes | Value |
|---|---|
| Acid resistant graphite enamel | |
| Drop down grill element | |
| Flat easy clean glass surface | |
| Removable oven door | |
| Removable oven door inner glass | |
| Removable shelf runners |
Controls
| Controls Attributes | Value |
|---|---|
| Audio feedback | |
| Automatic cooking/minute timer | |
| Automatic pre-set temperatures | |
| Celsius/Fahrenheit temperature | |
| Electronic clock | |
| Laser etched graphics | |
| Precise electronic temperature control | |
| Sabbath mode | |
| Toughened fused glass graphics | |
| Turned stainless steel clock buttons |
Oven features
| Oven features Attributes | Value |
|---|---|
| AeroTech™ technology | |
| Automatic rapid pre-heat | |
| Bright chromed, cast zinc dials with illuminated halos | |
| Electronic oven control | |
| Full extension telescopic sliding shelves | |
| Internal light | 4 x 25W halogen (2 side & 2 top) |
| Soft open/close door | |
| Storage drawer | |
| True convection | |
| Twin cavity fans |
Oven functions
| Oven functions Attributes | Value |
|---|---|
| Bake | |
| Classic bake | |
| Fan bake | |
| Fan forced | |
| Fan grill | |
| Grill | |
| Number of functions | 9 |
| Pastry Bake with Pizza mode | |
| Rapid proof | |
| Roast | |
| True convection |
Oven performance
| Oven performance Attributes | Value |
|---|---|
| CoolTouch door | Triple glazed |
Power requirements
| Power requirements Attributes | Value |
|---|---|
| Amperage | 67A |
| Supply frequency | 50Hz |
| Supply voltage | 220-240V |
Product dimensions
| Product dimensions Attributes | Value |
|---|---|
| Depth | 600mm |
| Height | 898 - 946mm |
| Width | 897mm |
Cooktop Features
| Cooktop Features Attributes | Value |
|---|---|
| Auto heat reduce | |
| Dual colour display | |
| Gentle heat | |
| Heat settings | 9 |
| Hob rail | |
| Induction cooking technology | |
| SmartZone | 1 |
| Zone bridging |
Cooktop Performance
| Cooktop Performance Attributes | Value |
|---|---|
| Centre | 2300W |
| Left front | 1600W |
| Left rear | 2100W |
| PowerBoost |
Safety
| Safety Attributes | Value |
|---|---|
| Advanced cooling system | |
| Anti-tilt bracket | |
| Balanced oven door | |
| Child lock | |
| CoolTouch door | |
| Full extension telescopic shelves | 1 set (part 578744) |
| Full extension telescopic sliding shelves | |
| Non-tip shelves | |
| Pan detection system | |
| Safety time out | |
| Spillage auto off | |
| Surface hot indicators |
Warranty
| Warranty Attributes | Value |
|---|---|
| Parts and labour | 2 years |
