DW60UN4B2
Series 7
Contemporary Built-under Dishwasher
- Contemporary
-
Smart
Offering a superior wash performance and advanced drying, this dishwasher is designed to fit flush under your benchtop for a seamless look.
- Finish
- Black Stainless Steel
$ 1,699.00
$ 1,499.00
Please enter a postcode to check for stock & delivery information.
Please enter a postcode to check for stock & delivery information.
Series 7
Contemporary Built-under Dishwasher
- Designed to be built under your benchtop, fitting flush with cabinetry for a seamless look
- Seven wash programs from Heavy to Light, including Auto, 60min and Eco
- Dry+, Sanitise, Half Load and Intensive modifiers provide extra wash options
- Wi-Fi enabled and works with the SmartHQ™ app for remote control and notifications
Any image or information associated with this model is preliminary and may be subject to change.
Height
820 - 880mm
Width
597mm
Depth
574mm
DESIGNED TO FIT

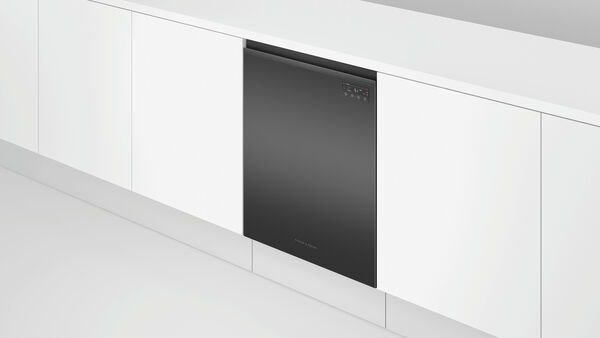

Seamless Design
Install this dishwasher flush under your benchtop with minimal gaps. Designed to match our Contemporary family of appliances with a recessed handle for a seamless finish in your kitchen.
PERFECT RESULTS
Advanced Drying
For beautifully dry dishes every time, this dishwasher features an advanced drying system. It combines fan-assisted drying with an automatic door opening at the cycle's end. The Auto Door Open Dry feature releases excess steam, ensuring dishes are immediately ready for use or storage. An innovative air curtain channels the steam away from the adjacent benchtop, protecting your cabinetry.
PERFECT RESULTS
A Reliable Clean
This dishwasher offers seven wash programs including Auto, which automatically senses the optimal wash settings for your dishes. The three-stage filtration system delivers a superior clean, while the rinse aid indicator reminds you to top up for beautifully clean dishes.
PERFECT RESULTS
Customise Your Wash
Create the perfect wash with our range of modifiers, from Intensive for a thorough clean to Half Load, ideal for a partial load. The Sanitise modifier provides extra protection, killing 99.9% of bacteria* in the final rinse, while Dry+ is great for plastic dishes. *Certified to NSF/ANSI Standard 184
PERFECT RESULTS
Quiet Performer
Running at a very low decibel rating, this dishwasher does its job without making a fuss. The combination of clever technology and simple mechanics means greater reliability and superior wash performance, with minimal noise.
RESPECT FOR THE PLANET
Efficient Performance
With a 4.5 star energy rating and 5.5 star water rating, this dishwasher delivers a powerful wash. Use the Eco wash program for optimal water and energy consumption, or choose when the cycle begins with Delay Start.
BEAUTIFUL TO USE
Flexible Loading
Designed to fit 15 place settings, this spacious model lets you stack large items with ease. Adjustable rack options provide flexibility for any load, with a full-width cutlery tray, height-adjustable middle rack, cup holders and wine glass supports.
Specifications
- Height
- 820 - 880mm
- Width
- 597mm
- Depth
- 574mm
Accessories (included)
| Accessories (included) Attributes | Value |
|---|---|
| Cutlery basket | |
| Kickstrip |
Capacity and loading
| Capacity and loading Attributes | Value |
|---|---|
| Accommodates round plates up to (lower basket) | 320mm |
| Accommodates round plates up to (top basket) | 200mm (with cutlery tray), 250mm (cutlery tray removed) |
| Adjustable height, foldable cupracks | |
| Easy lift adjustable upper basket | |
| Fold down tines | |
| Full width cutlery/utensil tray | |
| Large crockery insert in lower basket | |
| Place settings | 15 |
| Wine glass supports with stemware grippers |
Consumption
| Consumption Attributes | Value |
|---|---|
| Energy rating | 4.5 star |
| Energy usage | 206 kWh/year |
| In-use energy carbon emissions estimate | 134.2kgCO2e/year |
| Water consumption (per wash cycle) | 11.1L |
| Water efficiency | 5.5 star (WELS) |
Controls
| Controls Attributes | Value |
|---|---|
| Energy saving delay start option of up to 12 hours | |
| Internal light | |
| Intuitive capacitive touch controls | |
| Keylock | |
| Rinse aid indicator light | |
| Smart Appliance | |
| Time remaining LED display |
Features
| Features Attributes | Value |
|---|---|
| Air curtain for bench protection | |
| Aquastop | |
| Auto Door Open Dry | |
| Fan assisted drying | |
| Flood protection | |
| Fully independent spray arms | |
| Half load option | |
| Internal tub material | Stainless Steel |
| Motor type | BLDC |
| Three-stage filtration system |
Performance
| Performance Attributes | Value |
|---|---|
| Noise emissions | 42dBA |
Power requirements
| Power requirements Attributes | Value |
|---|---|
| Amperage | 10A |
| Supply frequency | 50Hz |
| Supply voltage | 220 - 240V |
Product dimensions
| Product dimensions Attributes | Value |
|---|---|
| Depth | 574mm |
| Height | 820 - 880mm |
| Width | 597mm |
Warranty
| Warranty Attributes | Value |
|---|---|
| Parts and labour | 2 years |
Wash Program Modifiers
| Wash Program Modifiers Attributes | Value |
|---|---|
| Dry + | |
| Half-load | |
| Intensive | |
| Sanitise | |
| Wash modifiers | 4 |
Wash Programs
| Wash Programs Attributes | Value |
|---|---|
| 60 min | |
| Auto | |
| Eco | |
| Heavy | |
| Light | |
| Medium | |
| Rinse | |
| Wash programs | 7 |
Water connection
| Water connection Attributes | Value |
|---|---|
| Water pressure | 30kPa - 1000 kPa |
| Water supply | 34" BSP (20mm) Connector Water Inlet Hose |
