HC90PCB1
90cm Series 7

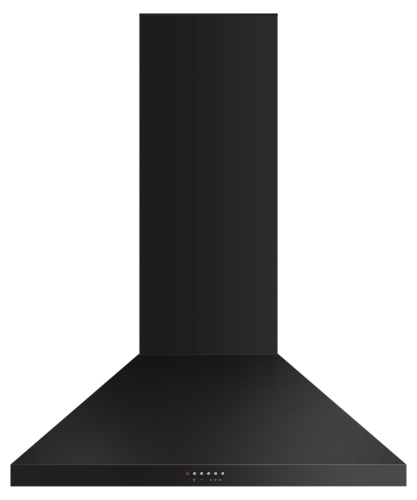

Pyramid Chimney Wall Rangehood
- Classic
Pairing well with the black Classic Freestanding Cooker, this wall chimney rangehood extracts steam and cooking odours effectively.
- Finish
- Black
$ 2,499.00
Please enter a postcode to check for stock & delivery information.
Please enter a postcode to check for stock & delivery information.
90cm Series 7
Pyramid Chimney Wall Rangehood
- With three fan speeds, select the perfect extraction rate for your cooking
- Dishwasher-safe filters that are easy to remove and clean
- Powerful 780m3/hr maximum airflow with edge-to-edge extraction
- Energy-efficient LED lighting to illuminate your cooktop
Height
636-975mm
Width
898mm
Depth
500mm
DESIGNED TO FIT
Complementary Design
This wall chimney rangehood is designed to match the black Classic Freestanding Cooker in both colour and style, including stylish chrome touch buttons.
PERFECT RESULTS
Cleaner Air
Odours can linger in the kitchen well after cooking is finished. With three fan speeds and a maximum airflow of 780m3/hr, this rangehood removes cooking odours effectively, as well as grease and steam while cooking.
BEAUTIFUL TO USE
Intuitive Controls
Classic-style chrome touch buttons are simple to use, giving you full control of your extraction.
BEAUTIFUL TO USE
Simple To Clean
Three stainless steel filters are easy to remove, and can be cleaned in the dishwasher or washed by hand in hot soapy water.
BUILT TO LAST
Design Quality
Made from quality stainless steel with an excellent finish and robust product design, this rangehood is both visually appealing and durable.
Respect for the planet
Considered Efficiency
The extraction rate ensures interior air and climate is not excessively removed to the outside, while LED lighting on the rangehood has been chosen for energy efficiency.
BEAUTIFUL TO USE
Easy Installation
This wall chimney rangehood is the perfect partner to your Fisher & Paykel Cooktop or Freestanding Cooker. It can be either externally ducted or internally recirculated, for simple installation
Specifications
- Height
- 636-975mm
- Width
- 898mm
- Depth
- 500mm
Accessories (included)
| Accessories (included) Attributes | Value |
|---|---|
| Aluminium filter | 792564 |
Accessories (sold separately)
| Accessories (sold separately) Attributes | Value |
|---|---|
| Chimney extension | 791774 (stainless steel), 793223 (black), 793224 (white), 793225 (red) |
| Eave ducting kit | PD-RHK 150E |
| Light bulb | 792556 |
| Recirculation carbon filter | 792481 |
| Recirculation diverter | 792560 |
| Roof ducting kit | PD-RHK 150T |
| Side wall ducting kit | PD-RHK 150W |
Fan ratings
| Fan ratings Attributes | Value |
|---|---|
| Maximum air movement | 780m³/hr |
| Speed 3 sound rating | 65dBA |
Installation and cleaning
| Installation and cleaning Attributes | Value |
|---|---|
| Dishwasher safe filters | 3 |
| Ducted | Vertical only |
| Recirculation | Optional |
| Stainless steel filter cover | |
| Two piece height adjustable flue |
Performance
| Performance Attributes | Value |
|---|---|
| Extraction type | Surface |
| Fan speeds | 3 |
| Filter type | Mesh |
| Number of filters | 3 |
Power requirements
| Power requirements Attributes | Value |
|---|---|
| Lighting power | 8W |
| Supply frequency | 50Hz |
| Supply voltage | 230V |
Product dimensions
| Product dimensions Attributes | Value |
|---|---|
| Depth | 500mm |
| Height | 636-975mm |
| Width | 898mm |
Product information
| Product information Attributes | Value |
|---|---|
| Control type | Classic style chrome touch buttons |
Ventilation features
| Ventilation features Attributes | Value |
|---|---|
| Light type | LED |
Warranty
| Warranty Attributes | Value |
|---|---|
| Parts and labour | 2 years |
