Home Cooking Ranges Contemporary Ranges

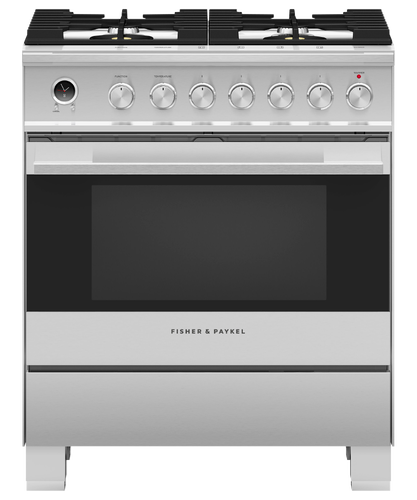

30" Series 9 Contemporary 4 Burner Dual Fuel Self-Cleaning Range, pdp
OR30SDG6X1

30" Series 9
Contemporary 4 Burner Dual Fuel Self-Cleaning Range

LPG / Natural Gas

3.8 out of 5 Customer Rating Reviews
  • Contemporary
Get the best of both worlds with dual fuel. A gas cooktop is paired with a nine function convection oven.
30" Series 9
Contemporary 4 Burner Dual Fuel Self-Cleaning Range
Stainless Steel
Where to Buy
Finish
Stainless Steel
MSRP $ 6,799.00
Where to Buy

30" Series 9
Contemporary 4 Burner Dual Fuel Self-Cleaning Range

LPG / Natural Gas

  • Four burner gas cooktop with two dual wok burners
  • Convection oven with 3.5 cu. ft total capacity and nine oven functions including Aero™ Pastry with Pizza mode, Roast, and Rapid Proof.
  • Non-tip full-extension shelves for safe removal of hot dishes
  • High-temperature self-cleaning function breaks down food residue for an easy clean
Height 353⁄4 - 375⁄8 "
Width 297⁄8 "
Depth 251⁄4 "

Receive up to $5000 instant rebate

Features & Benefits

The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

Multi-Shelf Cooking
PERFECT RESULTS

Multi-Shelf Cooking

Our AeroTech™ system circulates air evenly throughout the entire oven so dishes on the top shelf turn out just as perfect as food cooking on the bottom shelf.

Quality And Durability
BUILT TO LAST

Quality And Durability

Every detail has been carefully crafted. The solid, perfectly balanced soft-close door, durable cooktop grates and machined stainless dials with glowing halo all add up to an exceptional, premium range.

Easy To Clean
BEAUTIFUL TO USE

Easy To Clean

Cleaning up spills is effortless. Your cooktop simply needs a quick wipe to keep it looking good as new. The self-clean function breaks down food residue at a very high temperature, leaving a light ash that's easily removed with a damp cloth.

Burner power & control
PERFECT RESULTS

Burner power & control

Instant and immediate control from the highest to the gentlest heat. The finely tuned cooktop controls let you sear, stir fry or simmer a delicate sauce to perfection.

Large Capacity Oven
BEAUTIFUL TO USE

Large Capacity Oven

The generous 3.5 cu.ft total capacity oven gives you plenty of space to cook multiple dishes at once, with enough room to fit a 26 lb turkey.

Even Heat
PERFECT RESULTS

Even Heat

Accurate, electronically-controlled oven heat ensures a great result every time.

Specifications

Height
353⁄4 - 375⁄8 "
Width
297⁄8 "
Depth
251⁄4 "

Accessories (included)

Accessories (included) Attributes Value
2-pc grill system (Broil pan and Grill rack)
Broil pan
Broil rack
Full extension telescopic shelves 2 sets (part 578776)
Small pot support 1 (part 533981 cast)

Accessories (sold separately)

Accessories (sold separately) Attributes Value
Hob rear trim 3 1⁄8" (part 81656)
Kick strip, stainless steel (optional) KICKOR30X1

Burner ratings

Burner ratings Attributes Value
Dual wok burner inner/outer (LPG) 1000 - 18000BTU
Dual wok burner inner/outer (natural gas) 1000 - 18000BTU
Maximum burner power 18000 BTU
Semi-rapid burner (LPG) 1500 - 7600BTU
Semi-rapid burner (natural gas) 1500 - 8000BTU
Total cooktop power 52000 BTU

Capacity

Capacity Attributes Value
Shelf positions 7
Total capacity 3.5cu ft
Usable capacity 2.9cu ft

Cleaning

Cleaning Attributes Value
Acid resistant graphite enamel
Dishwasher proof grates
Drop down broil element
Flat easy clean glass surface
Pyrolytic proof shelf runners
Pyrolytic self-clean
Removable oven door
Removable shelf runners

Consumption

Consumption Attributes Value
Energy usage 337kWh/year

Controls

Controls Attributes Value
Audio feedback
Automatic cooking/minute timer
Automatic pre-set temperatures
Celsius/Fahrenheit temperature
Electronic clock
High resolution display
Laser etched graphics
Metal illuminated dials
Precise electronic temperature control
Sabbath mode
Turned stainless steel clock buttons
Turned stainless steel dials with illuminated halos

Gas Requirements

Gas Requirements Attributes Value
Supply Pressure (LPG) 11" W.C.P
Supply Pressure (natural gas) 4" W.C.P

Oven features

Oven features Attributes Value
AeroTech™ technology
Auto re-ignition system
Automatic rapid pre-heat
Concealed element
Electronic oven control
Full extension telescopic sliding shelves
Internal light 2 x 25W halogen (rear)
Soft open/close door
True convection
Turned stainless steel clock dial
Warming drawer

Oven functions

Oven functions Attributes Value
Aero Bake
Aero Broil
Aero™ Pastry with Pizza mode
Bake
Broil
Maxi Broil
Number of functions 9
Rapid proof
Roast
Self-clean
True Aero

Oven performance

Oven performance Attributes Value
Broil power 4050W
CoolTouch door Triple glazed
Warming drawer power 220W

Power requirements

Power requirements Attributes Value
Connection 4-prong grounding type [NEMA 14-50P plug]
Power supply 120 / 240 V or 120 / 208 V, 60 Hz
Service 40A

Product dimensions

Product dimensions Attributes Value
Depth 25 1⁄4"
Height 35 3⁄4 - 37 5⁄8"
Width 29 7⁄8"

Rangetop features

Rangetop features Attributes Value
Brass burner spreader (power burner)
Embossed brass burner cap (power burner)
Hob rail
Hob rear trim 3 1⁄8" (part 81656)
LPG/Natural gas compatible
Sealed range top

Rangetop Performance

Rangetop Performance Attributes Value
Number of burners 4

Safety

Safety Attributes Value
ADA compliant
Advanced cooling system
Anti-tilt bracket
Balanced oven door
Catalytic venting system
CoolTouch door
Full extension telescopic sliding shelves
Non-tip shelves
Spill containment 1⁄2 gallon

Warranty

Warranty Attributes Value
Parts and labour 2 years
