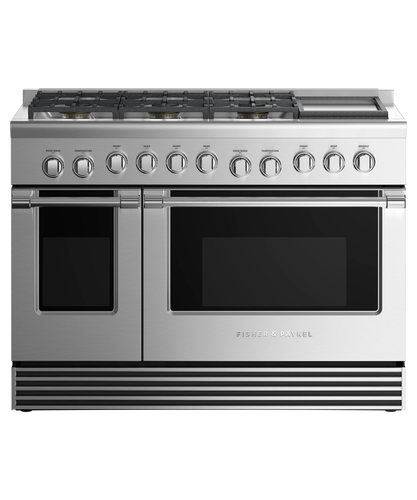

48" Series 7 Professional 6 Burner + Griddle Gas Range, LPG, pdp
  • END OF LINE
RGV2-486GD-L_N

48" Series 7
Professional 6 Burner with Griddle Gas Range

LPG

4.3 out of 5 Customer Rating Reviews
  • Professional
A striking addition to your kitchen, with six powerful gas burners and two gas ovens giving you a combined capacity of 7.7 cu ft.
48" Series 7
Professional 6 Burner with Griddle Gas Range
Stainless Steel, LPG
Where to Buy
Finish
Stainless Steel
Fuel Type
LPG
Where to Buy

48" Series 7
Professional 6 Burner with Griddle Gas Range

LPG

  • Top burner heat of 19,000 BTU, for seriously fast boiling
  • Expansive 7.7 cu ft total oven capacity across two oven cavities
  • Non-tip full-extension shelves in main cavity for safe removal of hot dishes

LPG gas; requires external bottles.

Height 353⁄4 - 363⁄4 "
Width 477⁄8 "
Depth 291⁄8 "

Features & Benefits

The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

Cooktop Power
BEAUTIFUL TO USE

Cooktop Power

Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.

Total Control
PERFECT RESULTS

Total Control

Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.

Instant Visibility
BEAUTIFUL TO USE

Instant Visibility

Control dials have halo-illumination glowing white – heating up; orange – temperature reached; red – self-cleaning mode. The oven is illuminated by two powerful incandescent lights.

Easy To Clean
BEAUTIFUL TO USE

Easy To Clean

A sealed cooktop surface coupled with a commercial-style stainless steel finish means your cooktop simply needs a quick wipe to keep it looking good as new.

Cooking Flexibility
BEAUTIFUL TO USE

Cooking Flexibility

The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.

Design Quality
BUILT TO LAST

Design Quality

This range has been carefully crafted in every detail from performance to durability using quality materials.

Specifications

heading.dimensions.header
Height
353⁄4 - 363⁄4 "
Width
477⁄8 "
Depth
291⁄8 "

Accessories (sold separately)

Accessories (sold separately) Attributes Value
Square handle option AH-R48

Burner ratings

Burner ratings Attributes Value
Maximum burner power 19000 BTU
Power back centre 13000BTU
Power back left 13000BTU
Power back right 13000BTU
Power front centre 15000BTU
Power front left 19000BTU
Power front right 15000BTU
Power griddle 15000BTU
Total cooktop power 103000 BTU

Capacity

Capacity Attributes Value
Shelf positions (main oven) 5
Shelf positions (second oven) 5

Controls

Controls Attributes Value
Electric circuit 3 wire
Metal illuminated dials

Gas Requirements

Gas Requirements Attributes Value
Fitting and pipe ½ NPT, min. ⅝" ∅ flex line
Supply Pressure (LPG) 11" to 14" W.C

Oven features

Oven features Attributes Value
Auto re-ignition system
Internal light

Oven performance

Oven performance Attributes Value
Main oven - Bake power 22,000 BTU
Secondary oven - Bake power 18,500 BTU

Power requirements

Power requirements Attributes Value
Amperage 15A
Rated current 15A
Supply frequency 60Hz

Product dimensions

Product dimensions Attributes Value
Depth 29 1⁄8"
Depth (excluding handles) 29 1⁄8"
Height 35 3⁄4 - 36 3⁄4"
Width 47 7⁄8"

Rangetop features

Rangetop features Attributes Value
Sealed range top
Vent trim included

Recommended Back Guards Ventilation

Recommended Back Guards Ventilation Attributes Value
Combustible situation BGRV2-3048H
Minimum CFM 1200
Non combustible situation BGRV2-3048 / BGRV2-1248
Recommended hood HCB48-12_N (48"" Professional Range Hood, Dual Blower)

Safety

Safety Attributes Value
ADA compliant
Full extension telescopic sliding shelves

Secondary oven features

Secondary oven features Attributes Value
3/4 Extension racks 2
Electronic oven control
Internal light

Secondary oven functions

Secondary oven functions Attributes Value
Bake
Number of secondary oven functions 2
Proof
