Features & Benefits
The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.
- PROMOTION

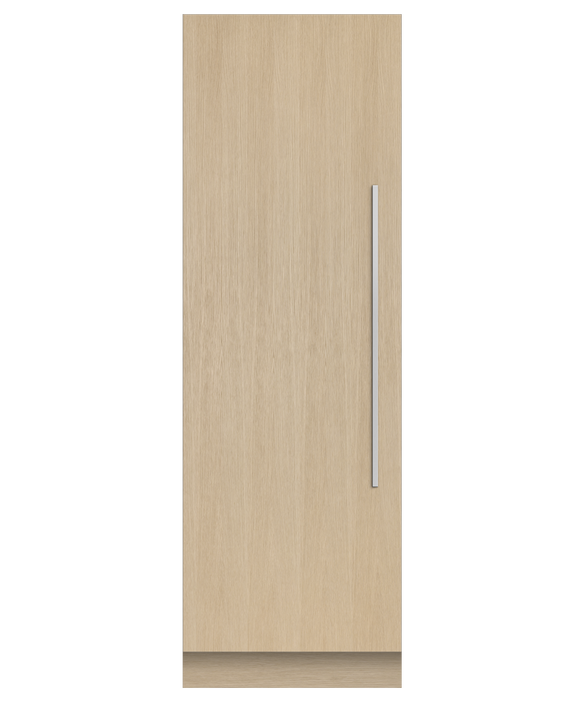

RS2474F3LJ1
24" Series 9
Integrated Triple Zone Freezer
Ice
- Integrated
-
Smart
Pair with the Integrated Triple Zone Refrigerator for the ultimate kitchen solution – this model features three independent food zones taking cooling flexibility to a new level.
Panel Ready,
Left hinge
- Finish
- Panel Ready
- Hinge
- Left hinge
MSRP
$ 6,399.00
Configure
How this works
24" Series 9
Integrated Triple Zone Freezer
Ice
- Three independent food zones, each with adjustable temperature to store different foods
- Panel ready, flush fit design with 3/16″ gaps and custom height installation
- Internal ice maker with boost for busy times
- Easy-to-use touch-control panel and Wi-Fi capability
Joiner kit accessory for paired installation sold separately. Available as left hinge, changeable to right hinge (parts included).
Height
7358 "
Width
23516 "
Depth
221116 "
PERFECT RESULTS
Three Levels Of Freshness
When it comes to optimal food preservation, one temperature does not fit all. Three independent food zones give you full control over the way you care for food. The Freezer zone has adjustable temperature from -6 to 7°F, while the top two compartments can be converted into a Chill (29 to 32°F), Soft-Freeze (14 to 18°F) or Freezer zone (-6 to 7°F), to best suit different types of food. Adjust temperature for everyday convenience, or to provide additional chilling capacity for special occasions.
DESIGNED TO FIT
Perfect Fit
These models fit flush, with only 3/16pathum gaps around them and no visible hinges or grilles. Our Integrated models can be seamlessly hidden behind your cabinetry, or you can purchase our stainless steel door panel.
DESIGNED TO FIT
Mix & Match
These modular refrigerators and freezers can be mixed and matched, with different sizes and finishes. Installed side by side or individually throughout the kitchen, you can create a cooling solution to suit your lifestyle. Customize with your own kitchen cabinetry and handles, or purchase our stainless steel door panel and handle options.
PERFECT RESULTS
Chill Mode
Keep ready-to-eat food fresher for longer with Chill mode (29 to 32°F). Chill mode is a perfect solution for everyday life. It keeps meats, poultry and fish as cool as possible without freezing, retaining vital freshness and helps food retain its condition. It’s also great for entertaining. Set one of the top two compartments to Chill mode to quickly bring beverages down to serving temperature.
RESPECT FOR THE PLANET
Clever Energy
ActiveSmart™ Foodcare learns how you live. It is technology that understands how you use your freezer and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
DESIGNED TO FIT
Simple Installation
Our Integrated products are easy to install, whether you are renovating your kitchen or designing a new one. Adjustable front and rear feet allow for uneven floors alongside adjustable door panels that can be customized to match your kitchen. These models are designed to easily slide into place as separate units – a perfect fit for European design kitchens.
BEAUTIFUL TO USE
Ease Of Use
Using the intuitive touch-sensitive control panel, you can easily adjust the temperature to suit. Beautiful to use, the freezer door is family safe with a soft-close mechanism.
Specifications
- Height
- 7358 "
- Width
- 23516 "
- Depth
- 221116 "
Accessories (included)
| Accessories (included) Attributes | Value |
|---|---|
| Hinge change (from left hinge to right hinge) | |
| Joiner Kit | AJRS74LR |
Accessories (sold separately)
| Accessories (sold separately) Attributes | Value |
|---|---|
| Door panel set stainless steel | (Right & left hinge) RD2474 |
| Handle kit Classic | AHCLRDSF |
| Handle kit Contemporary round, aluminium | AHSRDSF |
| Handle kit Contemporary square fine, aluminium | AHD5RDSF |
| Handle kit Contemporary square fine, black | AHD5RDSFB |
| Handle kit Professional round flush | AHP3RDSF |
| Handle kit Professional round flush, Brass off-stands | AHP3RDSFBA |
| Joiner kit | AJRS74LR |
| Toe kick stainless steel 23" | AKRS2304 |
| Toe kick stainless steel 47" | AKRS4704 |
| Toe kick stainless steel 71" | AKRS7104 |
Capacity
| Capacity Attributes | Value |
|---|---|
| Total gross capacity | 10.7cu ft |
| Volume freezer | 10.7cu ft |
Consumption
| Consumption Attributes | Value |
|---|---|
| Energy rating | Energy star |
| Energy usage | 379kWh/year |
| In-use energy carbon emissions estimate | 46.7kgCO2e/year |
Features
| Features Attributes | Value |
|---|---|
| Adjustable door shelves | 2 |
| Adjustable glass cantilevered shelves | |
| Door alarm | |
| LED lighting | |
| Smart Appliance | |
| SmartTouch control panel |
Freezer Features
| Freezer Features Attributes | Value |
|---|---|
| Automatic ice maker | |
| Bottle chill | |
| Door alarm | |
| Fast freeze | |
| Freezer bins | 4 |
| Ice Boost | |
| Ice making rate per day | 2.2lbs |
| LED bin lighting | |
| LED ceiling lighting | |
| LED side lighting |
Installation Dimensions
| Installation Dimensions Attributes | Value |
|---|---|
| Minimum inside width of cabinetry frame | 23 58" |
| Minimum internal depth of cabinetry | 24" |
| Minimum internal height of cabinetry | 74" |
Performance
| Performance Attributes | Value |
|---|---|
| ActiveSmart™ Foodcare | |
| Adaptive defrost | |
| Frost free | |
| Inverter controlled compressor | |
| Sabbath mode | |
| Triple evaporator | |
| Variable food modes | Chill |
| Variable temperature zones | 3 |
Power requirements
| Power requirements Attributes | Value |
|---|---|
| Rated current | 10A |
| Supply frequency | 60Hz |
| Supply voltage | 115V |
Product dimensions
| Product dimensions Attributes | Value |
|---|---|
| Depth | 22 1116" |
| Height | 73 58" |
| Width | 23 516" |
Warranty
| Warranty Attributes | Value |
|---|---|
| Parts and labour | 2 years |
| Sealed system parts only | 5 years |
