48" Series 7 Professional 8 Burner Gas Range, Natural Gas, pdp
  • END OF LINE
RGV2-488-N_N

48" Series 7
Professional 8 Burner Gas Range

Natural Gas

4.7 out of 5 Customer Rating Reviews
  • Professional
Size plus power. Eight burners deliver powerful 23,500 BTU heat, with two gas ovens for a combined 7.7 cu ft capacity.
48" Series 7
Professional 8 Burner Gas Range
Stainless Steel, Natural gas
Where to Buy
Finish
Stainless Steel
Fuel Type
Natural gas
Also available in
Where to Buy

48" Series 7
Professional 8 Burner Gas Range

Natural Gas

  • Top burner heat of 23,500 BTU, for seriously fast boiling
  • Expansive 7.7 cu ft total oven capacity across two oven cavities
  • Non-tip full-extension shelves in main cavity for safe removal of hot dishes

Natural gas; connects to gas mains

Height 353⁄4 - 363⁄4 "
Width 477⁄8 "
Depth 291⁄8 "

Features & Benefits

The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

Cooktop Power
BEAUTIFUL TO USE

Cooktop Power

Sealed Dual Flow Burners™ deliver cooktop power up to 23,500 BTU (NG models) for seriously fast boiling right down to a precise 140°F full surface simmer with the gentlest of flames.

PERFECT RESULTS

Total Control

Precise control across high and low settings is delivered through the halo-illuminated cooktop dials. The ovens have true convection and electronic oven control for precise and consistent temperatures.

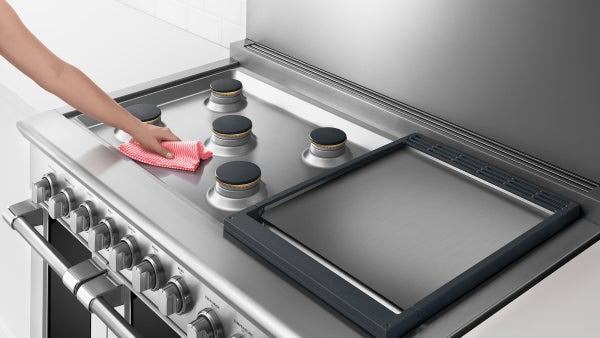

Easy To Clean
BEAUTIFUL TO USE

Easy To Clean

A sealed cooktop surface coupled with a commercial-style stainless steel finish means your cooktop simply needs a quick wipe to keep it looking good as new.

BEAUTIFUL TO USE

Instant Visibility

Control dials have halo-illumination glowing white – heating up; orange – temperature reached; red – self-cleaning mode. The oven is illuminated by two powerful incandescent lights.

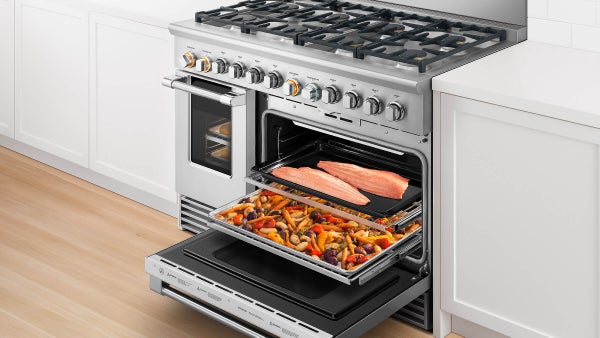

Cooking Flexibility
BEAUTIFUL TO USE

Cooking Flexibility

The cooktop is designed for easy access to any burner with grates you can smoothly slide pots across. The oven is large enough to hold full size baking sheets.

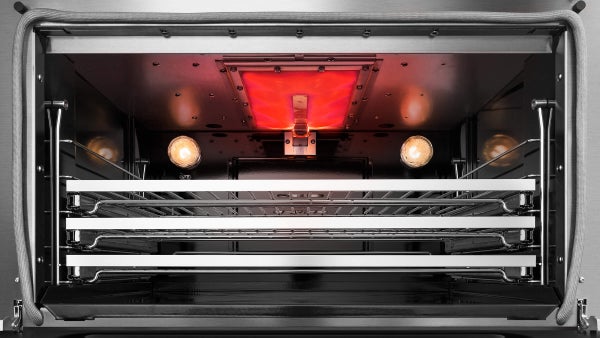

Consistent Broiling
PERFECT RESULTS

Consistent Broiling

The Gas Range broiler provides an even heat that covers a very large surface area — perfect for browning a fully loaded oven tray.

Specifications

heading.dimensions.header
Height
353⁄4 - 363⁄4 "
Width
477⁄8 "
Depth
291⁄8 "

Accessories (sold separately)

Accessories (sold separately) Attributes Value
Square handle option AH-R48

Burner ratings

Burner ratings Attributes Value
Maximum burner power 23500 BTU
Power back centre 18500BTU
Power back centre (2) 18500BTU
Power back left 18500BTU
Power back right 18500BTU
Power front centre 18500BTU
Power front centre (2) 18500BTU
Power front left 23500BTU
Power front right 23500BTU
Total cooktop power 158000 BTU

Capacity

Capacity Attributes Value
Shelf positions (main oven) 5
Shelf positions (second oven) 5

Controls

Controls Attributes Value
Electric circuit 3 wire
Metal illuminated dials

Gas Requirements

Gas Requirements Attributes Value
Fitting and pipe ½ NPT, min. ⅝" ∅ flex line
Supply Pressure (natural gas) 6" to 9" W.C

Oven features

Oven features Attributes Value
Auto re-ignition system
Internal light

Oven performance

Oven performance Attributes Value
Main oven - Bake power 28,000 BTU
Secondary oven - Bake power 18,000 BTU

Power requirements

Power requirements Attributes Value
Amperage 15A
Rated current 15A
Supply frequency 60Hz

Product dimensions

Product dimensions Attributes Value
Depth 29 1⁄8"
Height 35 3⁄4 - 36 3⁄4"
Width 47 7⁄8"

Rangetop features

Rangetop features Attributes Value
Sealed range top
Vent trim included

Recommended Back Guards Ventilation

Recommended Back Guards Ventilation Attributes Value
Combustible situation BGRV2-3048H
Minimum CFM 1200
Non combustible situation BGRV2-3048 / BGRV2-1248
Recommended hood HCB48-12_N (48"" Professional Range Hood, Dual Blower)

Safety

Safety Attributes Value
ADA compliant
Full extension telescopic sliding shelves

Secondary oven features

Secondary oven features Attributes Value
3/4 Extension racks 2
Electronic oven control
Internal light

Secondary oven functions

Secondary oven functions Attributes Value
Bake
Number of secondary oven functions 2
Proof
