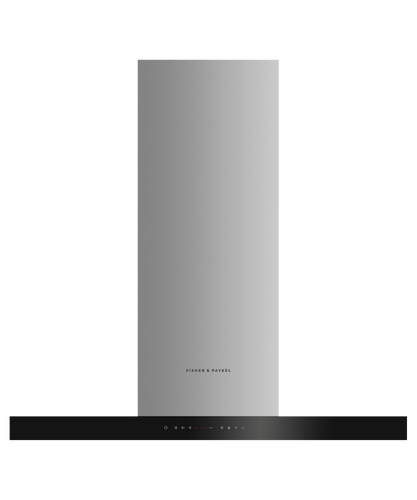

36" Series 7 Box Chimney Wall Range Hood, pdp
HC36DCXB4

36" Series 7
Box Chimney Wall Range Hood

5 out of 5 Customer Rating Reviews
  • Contemporary
  • Smart
This Contemporary style range hood extracts steam, grease and cooking odors quietly and efficiently.
36" Series 7
Box Chimney Wall Range Hood
Stainless Steel and Glass
Where to Buy
Finish
Stainless Steel and Glass
MSRP $ 1,899.00
Where to Buy

36" Series 7
Box Chimney Wall Range Hood

  • With three fan speeds plus a boost function, select the perfect extraction rate for your cooking
  • Energy-efficient LED lighting to illuminate your cooking surface
  • Powerful maximum air movement of 400CFM
  • Wi-Fi enabled for notifications through the SmartHQ™ app
Height 25 - 403⁄4 "
Width 353⁄8 "
Depth 1911⁄16 "

Receive up to $5000 instant rebate

Features & Benefits

The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

BEAUTIFUL TO USE

Quiet And Effective

Featuring perimeter extraction, four fan speeds, and a boost function, this range hood provides powerful extraction to quickly remove odors and steam. Odors can linger in the kitchen well after cooking is finished so the timer keeps the hood working for up to 15 minutes before automatically turning off.

BEAUTIFUL TO USE

Simple Controls

The intuitive control panel responds to the touch of your finger. LED strip lighting illuminates the entire cooktop surface for the perfect sear or ideal reduction. Range hood settings, including temperature and fan speed, can be controlled via the SmartHQ™ app, with additional voice control options for fan speeds and lighting.

BEAUTIFUL TO USE

Easy Cleaning

Designed for simple removal, the filters are easy to clean and dishwasher safe, while the glass and stainless steel finish is easily wiped clean. The SmartHQ™ app will notify you when to clean the filter to ensure you get the best performance out of your range hood.

DESIGNED TO FIT

Complementary Design

The stainless steel finish of this vent hood will complement any contemporary kitchen and is designed to match the rest of Fisher & Paykel kitchen appliance family.

DESIGNED TO FIT

Easy Installation

This range hood is the perfect partner to your Fisher & Paykel cooktop. It can be either externally ducted or internally recirculated, making it perfect for apartments.

Specifications

heading.dimensions.header
Height
25 - 403⁄4 "
Width
353⁄8 "
Depth
1911⁄16 "

Accessories (included)

Accessories (included) Attributes Value
Aluminium filter 792577

Accessories (sold separately)

Accessories (sold separately) Attributes Value
Chimney extension 792492
Recirculation carbon filter 793602
Recirculation diverter 792580

Fan ratings

Fan ratings Attributes Value
Maximum air movement 400CFM
Maximum speed sound rating 9sones
Speed 1 sound rating 1.1sones

Installation and cleaning

Installation and cleaning Attributes Value
Air outlet size 6"
Dishwasher safe filters 3
Ducted Top extraction
Recirculation Optional - top extraction

Performance

Performance Attributes Value
Extraction type Surface
Fan speeds 3
Filter type Mesh
Number of filters 3

Power requirements

Power requirements Attributes Value
Supply frequency 60Hz
Supply voltage 120V
Total Power 248W

Product dimensions

Product dimensions Attributes Value
Depth 19 11⁄16"
Height 25 - 40 3⁄4"
Width 35 3⁄8"

Product information

Product information Attributes Value
Control type Capacitive touch

Ventilation features

Ventilation features Attributes Value
Auto-off/Run-on timer
Dimmable lights
Filter cleaning alert
Light type LED
Smart Appliance

Warranty

Warranty Attributes Value
Parts and labour 2 years

Resources

Please note: Videos are not for downloading purposes

Design Planning

CAD Downloads

General

Installation
