Features & Benefits
The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.
DD60DTX6HI1

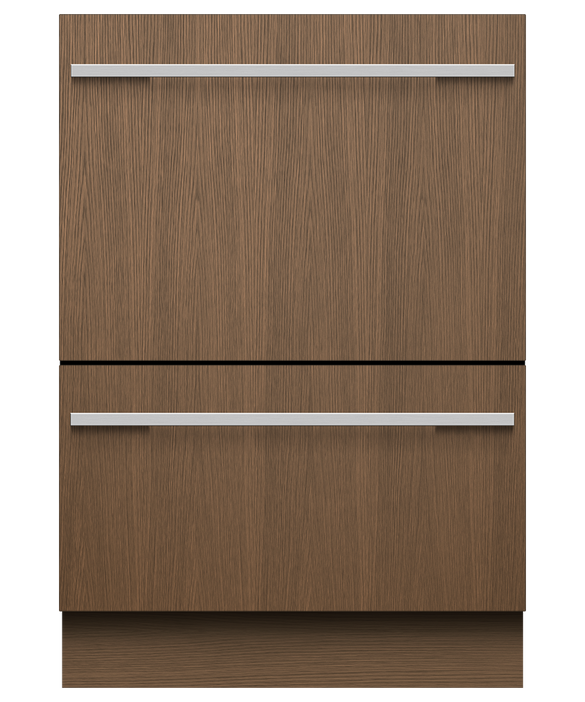

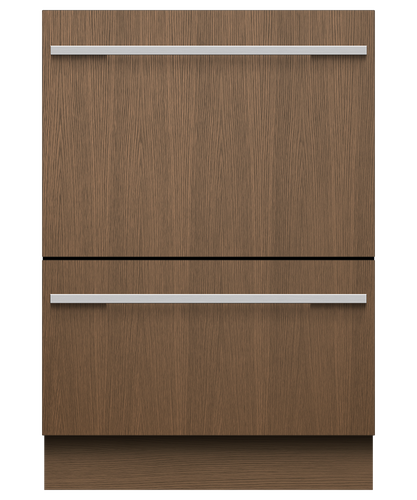

Series 11, Integrated Tall Double DishDrawer™ Dishwasher
- Series 11
- Integrated
Integrates seamlessly into kitchen cabinetry. Each drawer features a premium stainless steel interior and operates independently, for flexible washing.
- Finish
- Panel Ready
Series 11, Integrated Tall Double DishDrawer™ Dishwasher
- Eight wash cycles from Heavy to Light, including Auto, 60min and Glassware
- Fits plates up to 310mm, with flexible racking to accommodate other large cookware
- With soft-close drawers, and knock to pause convenience
Height
865 - 925mm
Width
599mm
Depth
553mm
DESIGNED TO FIT
Seamless Integration

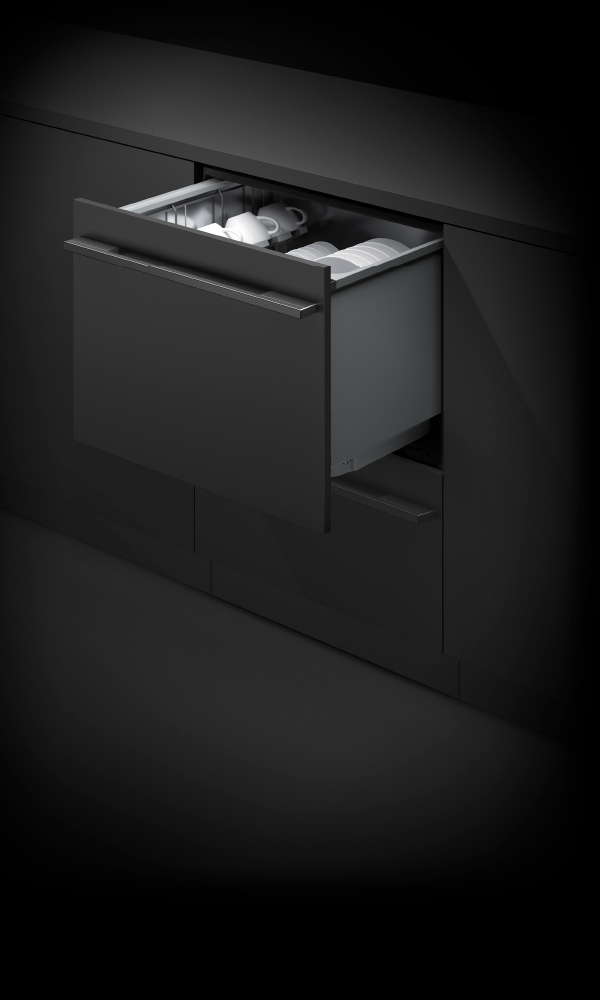

Install your DishDrawer™ Dishwasher into an existing kitchen space or integrate into kitchen cabinetry. The touch-sensitive control panel is located inside this Integrated model, leaving an uninterrupted exterior that blends seamlessly with surrounding cabinetry.
BEAUTIFUL TO USE
Ease Of Use
DishDrawer™ Dishwashers are beautiful to use with soft-close drawers. The tall top drawer fits your larger plates and dishes up to 310mm, while the bottom drawer is ideal for small washes. Flexible racking includes height-adjustable cup racks and wine glass supports.
BEAUTIFUL TO USE
True Half Load
Both drawers fit a true half load. Each drawer operates independently, so you can wash one load while stacking the other drawer, or wash simultaneously on separate cycles.
PERFECT RESULTS
Flexible Wash Options
Eight wash programs including Auto, 60min and Glassware, while modifiers such as Sanitise, Dry+ and Quiet provide added wash flexibility. The Quiet wash modifier reduces the noise on some cycles while maintaining performance – perfect for late night washing.
BUILT TO LAST
Design Quality
Every detail has been carefully crafted using quality materials, from the easy-to-clean stainless steel interior to the spray arm sensor that detects jams for increased wash confidence.
BEAUTIFUL TO USE
Knock To Pause
For ease-of-use, these DishDrawer™ Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher, which can be restarted by using the start button.
RESPECT FOR THE PLANET
Efficient Performance
This DishDrawer™ Dishwasher uses the water it needs without compromising on wash performance.
Specifications
- Height
- 865 - 925mm
- Width
- 599mm
- Depth
- 553mm
Accessories (included)
| Accessories (included) Attributes | Value |
|---|---|
| Cutlery basket | |
| Kickstrip | |
| Knife clip and multipurpose clip |
Accessories (sold separately)
| Accessories (sold separately) Attributes | Value |
|---|---|
| Door panel black stainless steel | ADDD60DTPB |
| Door panel stainless steel | ADDD60DTPX |
| Handle kit Contemporary square fine, aluminium | AHD5DDDW60S |
| Handle kit Contemporary square fine, black | AHD5DDDW60B |
Capacity and loading
| Capacity and loading Attributes | Value |
|---|---|
| Accommodates round plates up to | 310mm |
| Adjustable height, foldable cupracks | |
| Fold down tines | |
| Pitch adjustable tines | |
| Place settings | 16 |
| Place settings per drawer | 8 |
| Wine glass supports with stemware grippers |
Consumption
| Consumption Attributes | Value |
|---|---|
| Cleaning index | 1.21 |
| Drying index | 1.32 |
| Energy consumption | 0.54kWh/cycle |
| Energy rating | Grade 1 |
| Water consumption | 6.7L |
Controls
| Controls Attributes | Value |
|---|---|
| Electronic fault/Diagnostic indicator | |
| End of cycle beeps | |
| Energy saving delay start option of up to 12 hours | |
| Internal wash selector | |
| Intuitive capacitive touch controls | |
| Keylock | |
| Knock to pause | |
| Rinse aid indicator light | |
| Spray arm sensing |
Features
| Features Attributes | Value |
|---|---|
| Built-in water softener | |
| Fan assisted drying | |
| Flood protection | |
| Flow through detergent dispenser | |
| Internal tub material | Stainless steel |
| Quiet operation | |
| SmartDrive™ technology | |
| Soft close drawer |
Performance
| Performance Attributes | Value |
|---|---|
| Noise on standard cycle top drawer | 43dBA |
Power requirements
| Power requirements Attributes | Value |
|---|---|
| Amperage | 10A |
| Supply frequency | 50Hz |
| Supply voltage | 220 - 240V |
Product dimensions
| Product dimensions Attributes | Value |
|---|---|
| Depth | 553mm |
| Height | 865 - 925mm |
| Width | 599mm |
Warranty
| Warranty Attributes | Value |
|---|---|
| Parts and labour | 1 year |
Wash Program Modifiers
| Wash Program Modifiers Attributes | Value |
|---|---|
| Dry + | |
| Quiet | |
| Sanitise | |
| Wash modifiers | 3 |
Wash Programs
| Wash Programs Attributes | Value |
|---|---|
| 60 min | |
| Auto | |
| Eco | |
| Glassware | |
| Heavy | |
| Light | |
| Medium | |
| Rinse | |
| Wash programs | 8 |
Water connection
| Water connection Attributes | Value |
|---|---|
| Water pressure | 100kPa - 1000kPa |
| Water supply | 34" BSP (20mm) Connector Water Inlet Hose |
Resources
Please note: Videos are not for downloading purposes
Download the resource
Download and open pdf in new tab
Design Planning
CAD Downloads
-
2D CAD Files
-
3D CAD Files
