Features & Benefits
The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.
- PROMOTION

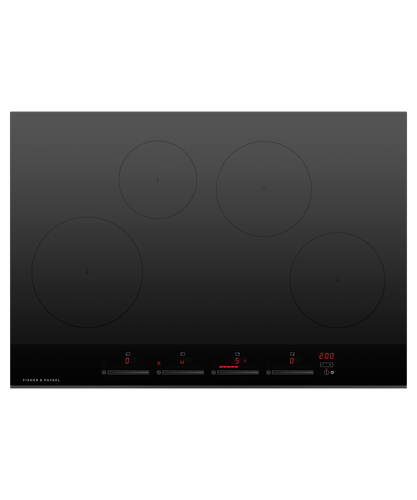

CI764DTB4
76cm Series 7
4 Zone Induction Hob
- Minimal
This Series 7 hob is a joy to use, with the instant response and energy efficiency of induction technology.
Black Glass
- Finish
- Black Glass
76cm Series 7
4 Zone Induction Hob
- Immediate heat response and extremely accurate temperature control
- Cooktop remains cool to touch until a pot or pan is placed on the surface
- PowerBoost activates a very high heat, bringing liquid to boil in less than a minute
- Easily control each cook zone with Touch&Slide
Please call a licenced Electrician to install all Induction cooktops
Height
54mm
Width
760mm
Depth
530mm
DESIGNED TO FIT
Complementary Design
The subtle black glass and durable matte black detailing are designed to pair with the Minimal style Series 7 Ovens. With premium styling and detailing, these hobs seamlessly blend with other appliances for a cohesive, considered kitchen design.
PERFECT RESULTS
Enhanced Features
PowerBoost and GentleHeat deliver either very high or very low heat, fast. Perfect for specialised cooking tasks such as searing meat and melting chocolate. An integrated timer ensures a great result every time
BEAUTIFUL TO USE
Instant Response
Go from a boil to a simmer in seconds. Touch&Slide controls react immediately when you adjust the temperature so you don’t waste time in the kitchen.
BEAUTIFUL TO USE
Safer Choice
Induction hobs only start heating your pot or pan once you’ve placed it on the ceramic surface and stop as soon as you remove it – so you don’t have to worry about curious little fingers or leaving a cook surface on.
BEAUTIFUL TO USE
Easy Cleaning
The surface around your cookware stays cool when you cook – preventing baked-on spills and making cleaning up a breeze. The ceramic hob surface, including anodised detailing for durability, just needs a quick wipe after use to maintain its good looks.
RESPECT FOR THE PLANET
Superior Efficiency
Less heat is wasted during induction cooking because only the cookware is heated, not the hob surface. This makes induction cooking more energy-efficient than electric or gas hobs.
Specifications
- Height
- 54mm
- Width
- 760mm
- Depth
- 530mm
Accessories (sold separately)
| Accessories (sold separately) Attributes | Value |
|---|---|
| Joiner kit | Part 534731 (required to join two cooktops) |
Cleaning
| Cleaning Attributes | Value |
|---|---|
| Flat easy clean glass surface |
Consumption
| Consumption Attributes | Value |
|---|---|
| Heating efficiency | 86% |
| Standby power |
Controls
| Controls Attributes | Value |
|---|---|
| Auto cut-off timer for each zone | |
| Minute timer | |
| Soft-touch electronic controls | |
| Touch and slide controls |
Performance
| Performance Attributes | Value |
|---|---|
| Auto heat reduce | |
| Gentle heat | |
| Heat settings | 9 |
| Induction cooking technology | |
| PowerBoost |
Power requirements
| Power requirements Attributes | Value |
|---|---|
| Standby power | |
| Supply voltage | 220 - 240V |
Product dimensions
| Product dimensions Attributes | Value |
|---|---|
| Depth | 530mm |
| Height | 54mm |
| Width | 760mm |
Safety
| Safety Attributes | Value |
|---|---|
| Keylock | |
| Pan detection system | |
| Safety time out | |
| Spillage auto off | |
| Surface hot indicators |
Warranty
| Warranty Attributes | Value |
|---|---|
| Parts and labour | 5 years |
Zone ratings
| Zone ratings Attributes | Value |
|---|---|
| Left front zone (PowerBoost set) | 2300W (3700W) |
| Left rear zone (PowerBoost set) | 1400W (2200W) |
| PowerBoost | up to 3700W |
| Right front zone (PowerBoost set) | 1850W (3000W) |
| Right rear zone (PowerBoost set) | 1850W (3000W) |
