Features & Benefits
The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.
OR90SDG6X1
90cm Series 9
Contemporary 5 Burner Dual Fuel Pyrolytic Freestanding Cooker
- Contemporary
Get the best of both worlds with dual fuel. A gas hob with wok burner is paired with a convection oven with 9 functions.
- Finish
- Stainless Steel
90cm Series 9
Contemporary 5 Burner Dual Fuel Pyrolytic Freestanding Cooker
- Five burner cooktop with with dual wok burner and two powerful triple ring burners
- Convection oven with 140L total capacity and nine oven functions plus rotisserie, including Pastry Bake™ with pizza mode
- Non-tip full-extension shelves for safe removal of hot dishes
- Pyrolytic self-clean that breaks down food residue for an easy clean
For products and light sources in scope of Regulation (EU) 2019/2015, the Product Information Sheet and energy label for each light source are available upon request.
Height
898 - 946mm
Width
897mm
Depth
600mm
PERFECT RESULTS

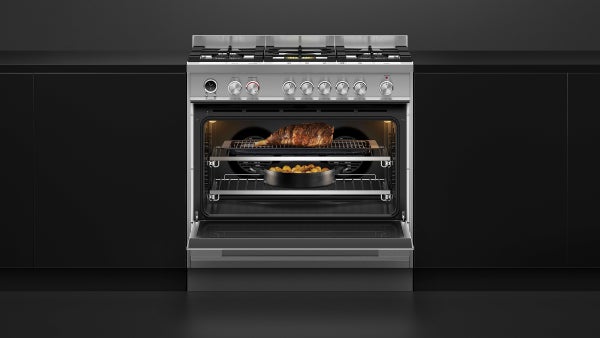

Multi-Shelf Cooking
Our AeroTech™ system circulates air evenly throughout the entire oven so dishes on the top shelf turn out just as perfect as food cooking on the bottom shelf.
BUILT TO LAST

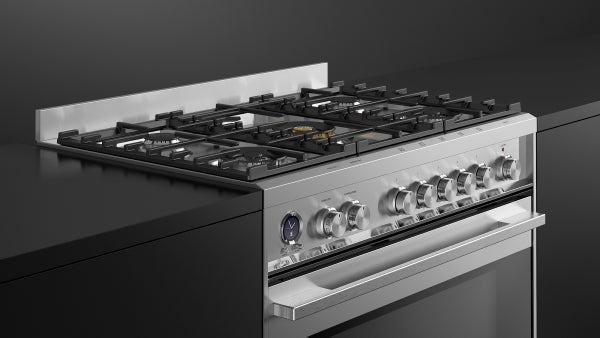

Quality And Durability
Every detail has been carefully crafted. The solid, perfectly balanced soft-close door, precise electric temperature control and chromed cast zinc dials all add up to an exceptional, premium range.
PERFECT RESULTS

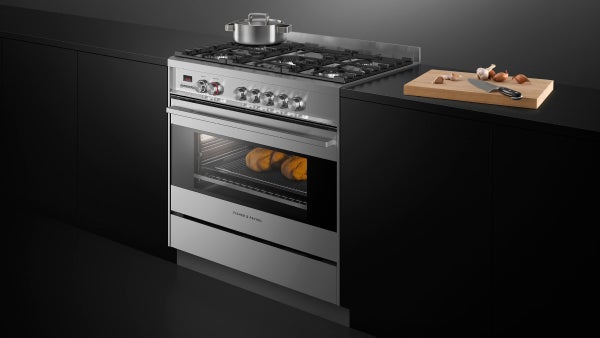

Burner Power & Control
Instant and immediate control from the highest to the gentlest heat. The finely tuned hob controls let you sear, stir fry or simmer a delicate sauce to perfection.
BEAUTIFUL TO USE

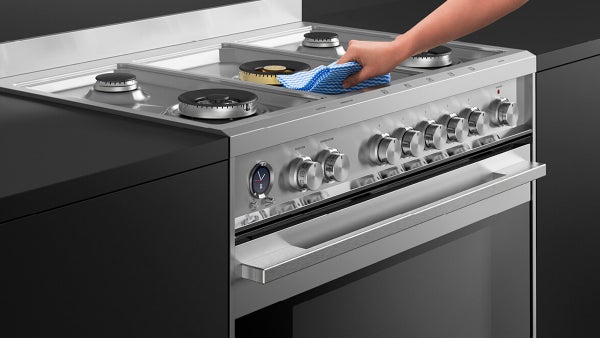

Easy To Clean
Cleaning up spills is effortless. Your hob simply needs a quick wipe to keep it looking good as new. The pyrolytic self-clean oven cycle breaks down food residue at a very high temperature, leaving a light ash that's easily removed with a damp cloth.
PERFECT RESULTS
Even Heat
Accurate, electronically-controlled oven heat ensures a great result every time.
BEAUTIFUL TO USE

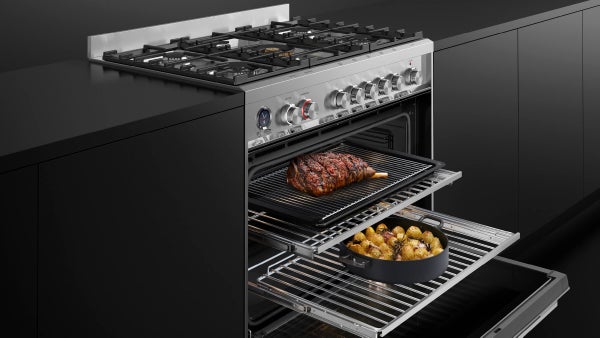

Large Capacity Oven
The generous 140L total capacity oven gives you plenty of space to cook multiple dishes at once.
Specifications
- Height
- 898 - 946mm
- Width
- 897mm
- Depth
- 600mm
Accessories (included)
| Accessories (included) Attributes | Value |
|---|---|
| Flat wire shelf | 1 |
| Full extension sliding shelves | 2 sets (part 578744) |
| Full extension telescopic shelves | 2 sets (part 578744) |
| Grill rack | |
| Roasting dish | 1 |
| Rotisserie set | 1 set |
| Small pot support | 1 (part 533981 cast) |
| Step down wire shelf |
Accessories (sold separately)
| Accessories (sold separately) Attributes | Value |
|---|---|
| Kick strip, stainless steel (optional) | KICKOR90X1 |
Burner ratings
| Burner ratings Attributes | Value |
|---|---|
| Dual wok burner inner/outer (LPG) | 0.3 - 4.5kW |
| Dual wok burner inner/outer (natural gas) | 0.4 - 4.5kW |
| Maximum burner power | 4.5kW |
| Semi-rapid burner (LPG) | 1.2kW |
| Semi-rapid burner (natural gas) | 1.2kW |
| Total cooktop power | 14.9kW |
| Triple ring wok burner (LPG) x2 | 4.0kW |
| Triple ring wok burner (natural gas) x2 | 4.0kW |
Capacity
| Capacity Attributes | Value |
|---|---|
| Shelf positions (main oven) | 6 |
| Total capacity | 140L |
| Usable capacity (main oven) | 120L |
Cleaning
| Cleaning Attributes | Value |
|---|---|
| Acid resistant graphite enamel | |
| Drop down grill element | |
| Pyrolytic proof shelf runners | |
| Pyrolytic self-clean | |
| Removable oven door | |
| Removable oven door inner glass | |
| Removable shelf runners |
Consumption
| Consumption Attributes | Value |
|---|---|
| Energy usage | 1.62kWh/cycle |
Controls
| Controls Attributes | Value |
|---|---|
| Audio feedback | |
| Automatic cooking/minute timer | |
| Automatic pre-set temperatures | |
| Celsius/Fahrenheit temperature | |
| Electronic clock | |
| High resolution display | |
| Laser etched graphics | |
| Precise electronic temperature control | |
| Sabbath mode | |
| Turned stainless steel clock buttons | |
| Turned stainless steel clock crown (dial) | |
| Turned stainless steel dials with illuminated halos |
Oven features
| Oven features Attributes | Value |
|---|---|
| AeroTech™ technology | |
| Automatic rapid pre-heat | |
| Electronic oven control | |
| Full extension telescopic sliding shelves | |
| Internal light | 4 x 25W halogen (2 side & 2 top) |
| Soft open/close door | |
| True convection | |
| Twin cavity fans | |
| Warming drawer |
Oven functions
| Oven functions Attributes | Value |
|---|---|
| Bake | |
| Energy slow cook | |
| Fan bake | |
| Fan forced | |
| Fan grill | |
| Grill | |
| Number of functions | 9 |
| Pastry Bake with Pizza mode | |
| Roast | |
| Rotisserie | |
| True convection |
Oven performance
| Oven performance Attributes | Value |
|---|---|
| CoolTouch door | Quadruple glazed |
| Warming drawer power | 202W |
Power requirements
| Power requirements Attributes | Value |
|---|---|
| Amperage | 23A |
| Supply frequency | 50Hz |
Product dimensions
| Product dimensions Attributes | Value |
|---|---|
| Depth | 600mm |
| Height | 898 - 946mm |
| Width | 897mm |
Hob Features
| Hob Features Attributes | Value |
|---|---|
| Brass burner spreader (power burner) | |
| Embossed brass burner cap (power burner) | |
| LPG/Natural gas compatible | |
| Sealed range top |
Safety
| Safety Attributes | Value |
|---|---|
| Advanced cooling system | |
| Anti-tilt bracket | |
| Balanced oven door | |
| Catalytic venting system | |
| CoolTouch door | |
| Flame failure system | |
| Full extension telescopic sliding shelves | |
| Non-tip shelves |
Warranty
| Warranty Attributes | Value |
|---|---|
| Parts and labour | 5 years |
