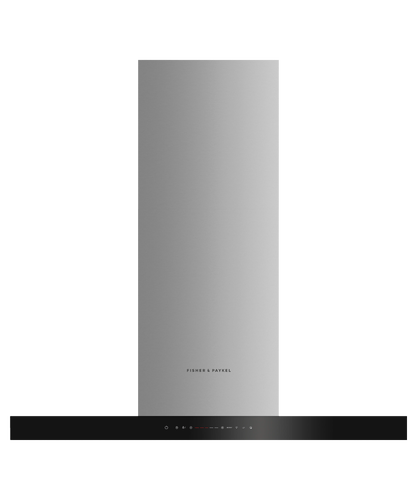

HC90BCXB4
90cm Series 7
Box Chimney Wall Cooker Hood
- Contemporary
-
Smart
The wall chimney cooker hood has a Contemporary styling, extracting steam, grease and cooking odours quietly and efficiently.
For connectable product please see the PSTI Compliance Statement
Stainless Steel and Glass
£850.00
- Finish
- Stainless Steel and Glass
£850.00
In Stock
In Stock
90cm Series 7
Box Chimney Wall Cooker Hood
- With three fan speeds, plus a boost function, select the perfect extraction rate for your cooking
- Powerful maximum air movement of 617m³/hr
- Dishwasher-safe filters that are easy to remove and clean
- Wi-Fi enabled for notifications through the SmartHQ™ app
Recirculation options available. Any image or information associated with this model is preliminary and may be subject to change.
Height
635-1035mm
Width
898mm
Depth
500mm
BEAUTIFUL TO USE
Quiet And Effective
Featuring perimeter extraction, three fan speeds and a boost function, this cooker hood provides powerful extraction to quickly remove odours and steam. Odours can linger in the kitchen well after cooking is finished so the timer keeps the hood working for up to 15 minutes before automatically turning off.
BEAUTIFUL TO USE
Simple Controls
The intuitive control panel responds to the touch of your finger. LED strip lighting illuminates the entire hob surface for the perfect sear or ideal reduction. Cooker hood settings, including temperature and fan speed, can be controlled via the SmartHQ™ app, with additional voice control options for fan speeds and lighting.
BEAUTIFUL TO USE
Easy Cleaning
Designed for simple removal, the filters are easy to clean and dishwasher safe, while the glass and stainless steel finish is easily wiped clean. The SmartHQ™ app will notify you when to clean the filter to ensure you get the best performance out of your cooker hood.
DESIGNED TO FIT
Complementary Design
This wall cooker hood features sleek black glass and stainless steel styling which will complement any contemporary kitchen.
DESIGNED TO FIT
SEAMLESS CONTROL
This wall chimney cooker hood is the perfect partner to your Fisher & Paykel hob. It can be either externally ducted or internally recirculated, making it perfect for apartments.
Specifications
- Height
- 635-1035mm
- Width
- 898mm
- Depth
- 500mm
Accessories (sold separately)
| Accessories (sold separately) Attributes | Value |
|---|---|
| Recirculation carbon filter | 792481 |
Consumption
| Consumption Attributes | Value |
|---|---|
| Energy usage | 42kWh/year |
| In-use energy carbon emissions estimate | 8.3kgCO2e/year |
Installation and cleaning
| Installation and cleaning Attributes | Value |
|---|---|
| Dishwasher safe filters | 3 |
| Ducted | Top extraction |
| Recirculation | Optional - top extraction |
| Stainless steel filter cover | |
| Two piece height adjustable flue |
Performance
| Performance Attributes | Value |
|---|---|
| Extraction type | Surface |
| Fan speeds | 3 |
| Filter type | Mesh with Stainless Steel filter cover |
| Number of filters | 3 |
Power requirements
| Power requirements Attributes | Value |
|---|---|
| Motor power | 130W |
| Supply frequency | 50Hz |
| Supply voltage | 220-240V |
Product dimensions
| Product dimensions Attributes | Value |
|---|---|
| Depth | 500mm |
| Height | 635-1035mm |
| Width | 898mm |
Product information
| Product information Attributes | Value |
|---|---|
| Control type | Capacitive touch |
Ventilation features
| Ventilation features Attributes | Value |
|---|---|
| Auto-off/Run-on timer | |
| Dimmable lights | |
| Filter cleaning alert | |
| Light type | LED strip |
| Smart Appliance | |
| Timer function |
Warranty
| Warranty Attributes | Value |
|---|---|
| Parts and labour | 5 years |
