83cm Series 9 4 Zone Induction Hob with Integrated Ventilation, hero
CID834DTB4

83cm Series 9
4 Zone Induction Hob

Integrated Ventilation

4.3 out of 5 Customer Rating Reviews
  • Minimal

A true two-in-one appliance, this hob combines the precision of induction cooking with powerful extraction in one seamless, stylish hob.

A+
Energy efficiency label ratings are updated from 1 March 2021. Learn More
83cm Series 9
4 Zone Induction Hob
Black Glass
£2,890.00
Finish
Black Glass
£2,890.00
In Stock
In Stock

83cm Series 9
4 Zone Induction Hob

Integrated Ventilation

  • Seamless kitchen integration, without the need for overhead ventilation
  • Four cooking zones, including simple pairing of two zones to create a SmartZone
  • With nine fan speeds plus boost, select the perfect extraction rate for your cooking
  • Minimal style, sleek black glass finish to suit any kitchen design
Height 218mm
Width 830mm
Depth 515mm

Features & Benefits

The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

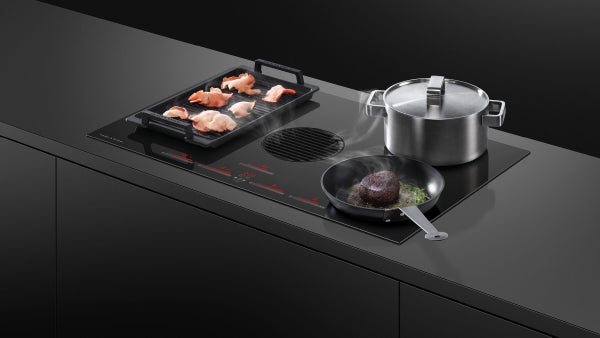

Seamless Integration
DESIGNED TO FIT

Seamless Integration

Offering true design freedom, this hob can be placed anywhere – eliminating the need for bulky overhead ventilation and helping to create a seamless flow between kitchen and living spaces. Installed raised or flush, it’s perfect for islands, or homes with high ceilings.

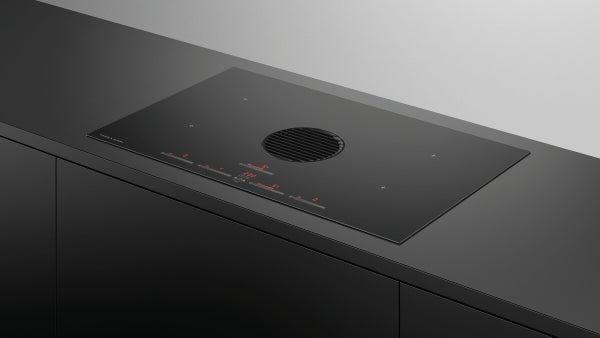

Elegant Design
DESIGNED TO FIT

Elegant Design

The subtle black glass and durable matte black detailing blend elegance with durability. With premium styling, these hobs seamlessly blend with other appliances for a cohesive, considered kitchen design.

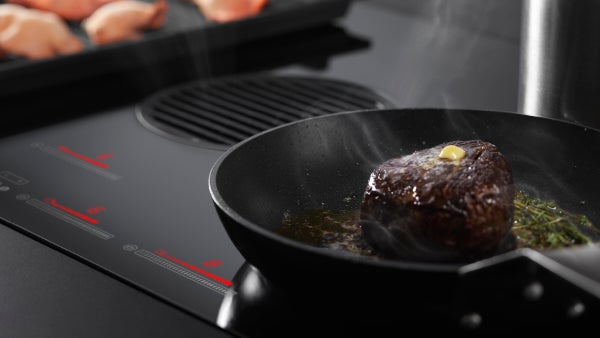

Precise Control
PERFECT RESULTS

Precise Control

Fisher & Paykel induction hobs offer extremely accurate temperature control from very high to very low heats, so you can sear, sauté and temper like a pro. Touch&Slide controls react immediately when you adjust the temperature, so you can go from a boil to a simmer in seconds.

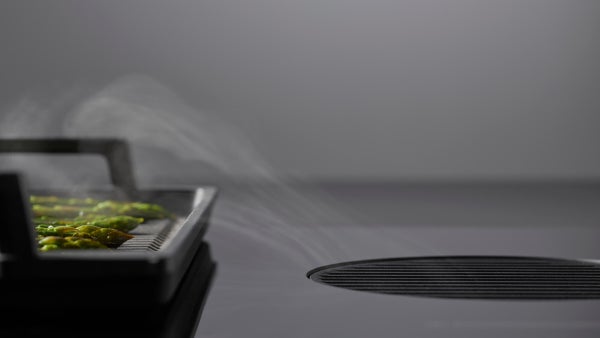

Effective Extraction
PERFECT RESULTS

Effective Extraction

Designed for busy homes, the integrated ventilation works effectively and unobtrusively in the background. Featuring nine fan speeds, plus a boost function, for quickly removing odours and steam.

Safety Of Induction
BEAUTIFUL TO USE

Safety Of Induction

Induction hobs only start heating your pot or pan once you’ve placed it on the surface and stop as soon as you remove it – so they are safer for everyone.

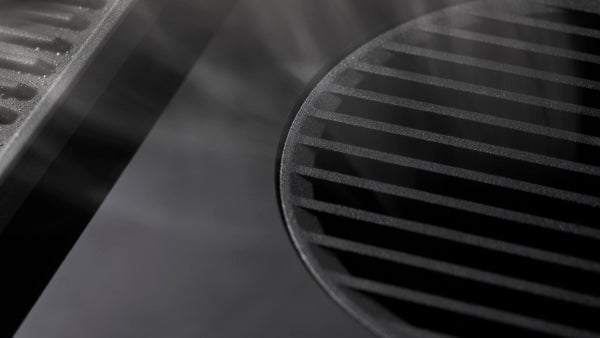

Ease Of Use
BEAUTIFUL TO USE

Ease Of Use

Designed for simple removal, the grease filter tray effectively captures spills, while the single glass cooking surface can be easily wiped clean. A flush ventilation grille allows pots to effortlessly slide across the hob surface.

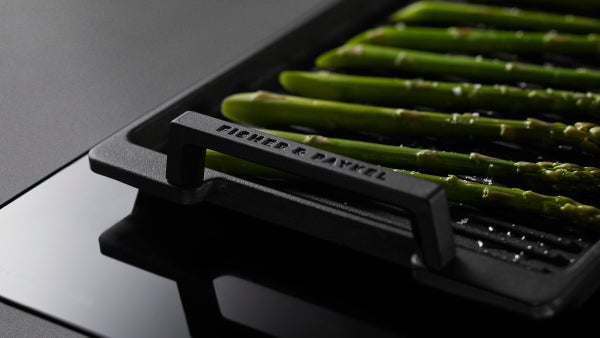

Superior Efficiency
RESPECT FOR THE PLANET

Superior Efficiency

Less heat is wasted during induction cooking because only the cookware is heated, not the hob surface. This makes induction cooking more energy-efficient than electric or gas hobs.

Specifications

Height
218mm
Width
830mm
Depth
515mm

Accessories (sold separately)

Accessories (sold separately) Attributes Value
Square grille & butterfly valve for wall exhaust 82393 DO-G-SS (optional)

Cleaning

Cleaning Attributes Value
Dishwasher safe grease filter
Flat easy clean glass surface
Flush grille

Consumption

Consumption Attributes Value
Energy rating A+

Controls

Controls Attributes Value
Auto cut-off timer for each zone
Minute timer
Soft-touch electronic controls
Touch and slide controls

Downdraft performance

Downdraft performance Attributes Value
Air outlet size 220mm W x 90 mm H
Air speeds 9 + boost
Ducted externally
Ducting direction Side, Rear
Maximum air flow (Boost) 660m³/hr
Maximum air flow (Level 9) 623m³/hr
Maximum noise level (Boost) 70dBA
Maximum noise level (Level 9) 69dBA
Minimum air flow 192m³/hr
Minimum noise level 38dBA
Motor type

Ducting Accessories (optional)

Ducting Accessories (optional) Attributes Value
Duct 1m Connector 222x89 82389 D1-C-222-89
Ducting adaptor 82392 DA-219-98-150
Elbow 90° horizontal 222x89 82390 E90-H-222-89
Elbow 90° vertical 222x89 82391 E90-V-222-89

Performance

Performance Attributes Value
Gentle heat
Heat settings 9
Induction cooking technology
Pause function
PowerBoost
SmartZone

Power requirements

Power requirements Attributes Value
Electrical connection Terminal block
Maximum power 7.4kW
Supply frequency 50Hz
Supply voltage 220 - 240V

Product dimensions

Product dimensions Attributes Value
Depth 515mm
Height 218mm
Width 830mm

Safety

Safety Attributes Value
Keylock
Pan detection system
Safety time out
Surface hot indicators

Warranty

Warranty Attributes Value
Parts and labour 5 years

Zone ratings

Zone ratings Attributes Value
Left front 2100W
Left front zone (PowerBoost set) 3000W
Left rear 2100W
Left rear zone (PowerBoost set) 3000W
Right front 2100W
Right front zone (PowerBoost set) 3000W
Right rear 2100W
Right rear zone (PowerBoost set) 3000W
SmartZone 3700W

Zones

Zones Attributes Value
Number of elements 4
