CID834RDTB4
83cm Series 9

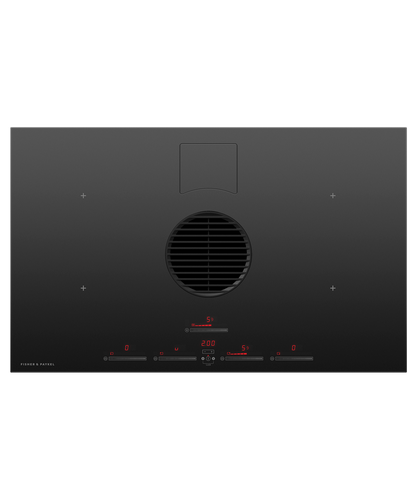

Minimal 4 Zone Induction Hob with Integrated Ventilation
- Minimal
A true two-in-one appliance, this hob combines the precision of induction cooking with powerful extraction in one seamless, stylish hob.
Black Glass
£2,890.00
- Finish
- Black Glass
£2,890.00
In Stock
In Stock
83cm Series 9
Minimal 4 Zone Induction Hob with Integrated Ventilation
- Seamless kitchen integration, without the need for overhead ventilation
- Four cooking zones, including simple pairing of two zones to create a SmartZone
- With nine fan speeds plus boost, select the perfect extraction rate for your cooking
- Minimal style, sleek black glass finish to suit any kitchen design
- Works effectively in the background by recirculating vented air
Height
217mm
Width
830mm
Depth
515mm
DESIGNED TO FIT
Seamless Integration

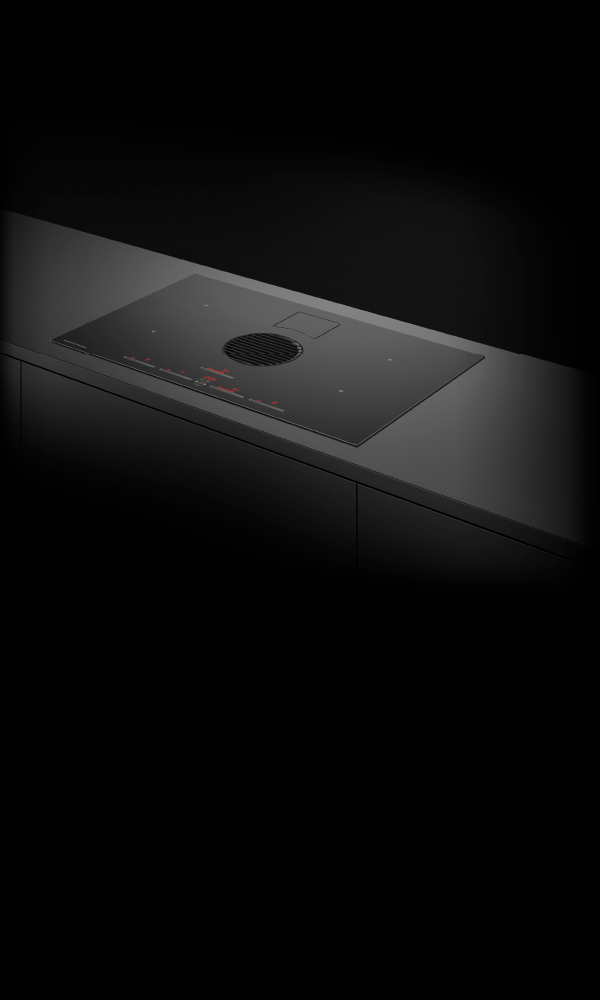

Offering true design freedom, this hob can be placed anywhere – eliminating the need for bulky overhead ventilation and helping to create a seamless flow between kitchen and living spaces. Installed raised or flush, it’s perfect for islands, or homes with high ceilings.
DESIGNED TO FIT
Elegant Design
The subtle black glass and durable matte black detailing blend elegance with durability. With premium styling, these hobs seamlessly blend with other appliances for a cohesive, considered kitchen design.
PERFECT RESULTS
Precise Control
Fisher & Paykel induction hobs offer extremely accurate temperature control from very high to very low heats, so you can sear, sauté and temper like a pro. Touch&Slide controls react immediately when you adjust the temperature, so you can go from a boil to a simmer in seconds.
PERFECT RESULTS
Effective Extraction
Designed for busy homes, the integrated ventilation works effectively and unobtrusively in the background by recirculating vented air. Featuring nine fan speeds, plus a boost function, for quickly removing odours and steam.
BEAUTIFUL TO USE
Safety Of Induction
Induction hobs only start heating your pot or pan once you’ve placed it on the surface and stop as soon as you remove it – so they are safer for everyone.
BEAUTIFUL TO USE
Ease Of Use
Designed for simple removal, the grease filter tray effectively captures spills, while the single glass cooking surface can be easily wiped clean. A flush ventilation grille allows pots to effortlessly slide across the hob surface.
RESPECT FOR THE PLANET
Superior Efficiency
Less heat is wasted during induction cooking because only the cookware is heated, not the hob surface. This makes induction cooking more energy-efficient than electric or gas hobs.
Specifications
- Height
- 217mm
- Width
- 830mm
- Depth
- 515mm
Accessories (sold separately)
| Accessories (sold separately) Attributes | Value |
|---|---|
| Replacement recirculation filter | 50183 FR-DD |
Cleaning
| Cleaning Attributes | Value |
|---|---|
| Dishwasher safe grease filter | |
| Flat easy clean glass surface | |
| Flush grille | |
| Odour filter | 3x Ceramic |
Consumption
| Consumption Attributes | Value |
|---|---|
| Energy rating | A+ |
Controls
| Controls Attributes | Value |
|---|---|
| Auto cut-off timer for each zone | |
| Minute timer | |
| Soft-touch electronic controls | |
| Touch and slide controls |
Downdraft performance
| Downdraft performance Attributes | Value |
|---|---|
| Air outlet size | 333mm W x 33 mm H (Toekick outlet) |
| Air speeds | 9 + boost |
| Ducting direction | Front (ducting included), Side & Rear (ducting optional) |
| Maximum air flow (Boost) | 660m³/hr |
| Maximum air flow (Level 9) | 623m³/hr |
| Maximum noise level (Boost) | 70dBA |
| Maximum noise level (Level 9) | 69dBA |
| Minimum air flow | 192m³/hr |
| Minimum noise level | 38dBA |
| Motor type | |
| Recirculation |
Ducting Accessories (optional)
| Ducting Accessories (optional) Attributes | Value |
|---|---|
| Duct 1m Connector 218x55 | 82394 D1-C-218-55 |
| Elbow 90° 222x218x55 | 82395 E90-222218-55 |
Performance
| Performance Attributes | Value |
|---|---|
| Gentle heat | |
| Heat settings | 9 |
| Induction cooking technology | |
| Pause function | |
| PowerBoost | |
| SmartZone |
Power requirements
| Power requirements Attributes | Value |
|---|---|
| Electrical connection | Terminal block |
| Maximum power | 7.4kW |
| Supply frequency | 60Hz |
Product dimensions
| Product dimensions Attributes | Value |
|---|---|
| Depth | 515mm |
| Height | 217mm |
| Width | 830mm |
Safety
| Safety Attributes | Value |
|---|---|
| Keylock | |
| Pan detection system | |
| Safety time out | |
| Surface hot indicators |
Warranty
| Warranty Attributes | Value |
|---|---|
| Parts and labour | 5 years |
Zone ratings
| Zone ratings Attributes | Value |
|---|---|
| Left front | 2100W |
| Left front zone (PowerBoost set) | 3000W |
| Left rear | 2100W |
| Left rear zone (PowerBoost set) | 3000W |
| Right front | 2100W |
| Right front zone (PowerBoost set) | 3000W |
| Right rear | 2100W |
| Right rear zone (PowerBoost set) | 3000W |
| SmartZone | 3700W |
Zones
| Zones Attributes | Value |
|---|---|
| Number of elements | 4 |
