DD60D4HNX9
Series 9

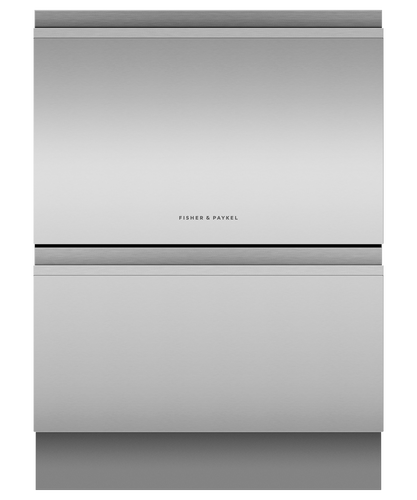

Contemporary Double DishDrawer™ Dishwasher
- Contemporary
-
Smart
Wash one drawer while you load the other, with room in each drawer for full-size dinner plates.
For connectable product please see the PSTI Compliance Statement
Stainless Steel
£1,750.00
- Finish
- Stainless Steel
£1,750.00
In Stock
In Stock
Series 9
Contemporary Double DishDrawer™ Dishwasher
- Designed to be installed under your benchtop, with recessed handles for a seamless look
- Six wash programs, as well as additional Quick wash, Sanitise and Extra Dry modifiers
- Flexible racking allows you to customise internal shelves to suit your needs
- Wi-Fi enabled and works with the SmartHQ™ app for remote control and notifications
Height
820 - 880mm
Width
599mm
Depth
573mm
DESIGNED TO FIT
Seamless Fit
Our built-under DishDrawer™ Dishwashers are installed flush under your benchtop with the option of a custom kickstrip, ensuring minimal gaps. The touch-sensitive control panel is located inside this model, leaving an uninterrupted exterior. Designed to match the Fisher & Paykel family of kitchen appliances with recessed handles for a streamlined look.
BEAUTIFUL TO USE
Ease Of Use
DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.
PERFECT RESULTS
Quick, Sanitise And Extra Dry Options
The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitise option provides extra protection, killing 99.9% of bacteria* in the final rinse. The Extra Dry setting is perfect for plastic dishes. *Certified to NSF/ANSI Standard 184
BEAUTIFUL TO USE
True Half Load
Each drawer holds a true half load for small, fast washing that won't waste water. Both drawers operate independently so two wash cycles can operate simultaneously to allow for varying loads.
BEAUTIFUL TO USE
Knock To Pause
For ease-of-use, these DishDrawer™ Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher, which can be restarted by using the start button.
PERFECT RESULTS
Independent Wash
With the ability to use both drawers independently and select different wash programs, the DishDrawer™ Dishwasher can wash everything from fine glass and crystal to heavily soiled pots and pans.
BEAUTIFUL TO USE
Quiet Performer
Running at a very low decibel rating, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
Specifications
- Height
- 820 - 880mm
- Width
- 599mm
- Depth
- 573mm
Accessories (included)
| Accessories (included) Attributes | Value |
|---|---|
| Cutlery basket | |
| Kickstrip | |
| Knife clip and multipurpose clip |
Capacity and loading
| Capacity and loading Attributes | Value |
|---|---|
| Accommodates round plates up to | 280mm |
| Adjustable height, foldable cupracks | |
| Fold down tines | |
| Pitch adjustable tines | |
| Place settings | 12 |
| Place settings per drawer | 6 |
Consumption
| Consumption Attributes | Value |
|---|---|
| Energy rating | E |
| Energy usage | 54kWh/100 cycles per drawer |
| In-use energy carbon emissions estimate | 10.7kgCO2e/100 cycles per drawer |
| Water usage (per wash cycle) | 7.8L per drawer |
Controls
| Controls Attributes | Value |
|---|---|
| Energy saving delay start option of up to 12 hours | |
| Internal wash selector | |
| Intuitive capacitive touch controls | |
| Keylock | |
| Knock to pause | |
| Rinse aid indicator light | |
| Smart Appliance |
Features
| Features Attributes | Value |
|---|---|
| Built-in water softener | |
| Fan assisted drying | |
| Flood protection | |
| Flow through detergent dispenser | |
| Motor type | BLDC |
| Quiet operation | |
| SmartDrive™ technology |
Performance
| Performance Attributes | Value |
|---|---|
| Noise on standard cycle top drawer | 43dBA |
Power requirements
| Power requirements Attributes | Value |
|---|---|
| Amperage | 10A |
| Rated current | 8.5A |
| Supply frequency | 50Hz |
| Supply voltage | 220 - 240V |
Product dimensions
| Product dimensions Attributes | Value |
|---|---|
| Depth | 573mm |
| Height | 820 - 880mm |
| Width | 599mm |
Warranty
| Warranty Attributes | Value |
|---|---|
| Parts and labour | 5 years |
Wash Program Modifiers
| Wash Program Modifiers Attributes | Value |
|---|---|
| Extra Dry | |
| Quick | |
| Sanitise | |
| Wash modifiers | 3 |
Wash Programs
| Wash Programs Attributes | Value |
|---|---|
| Delicate | |
| Eco | |
| Fast | |
| Heavy | |
| Medium | |
| Rinse | |
| Wash programs | 6 |
Water connection
| Water connection Attributes | Value |
|---|---|
| Water pressure | 100kPa - 1000kPa |
| Water supply | 34" BSP (20mm) Connector Water Inlet Hose |
