Features & Benefits
The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.
- NEW
DW60U4HI2
Series 7
Integrated Dishwasher
- Integrated
Designed to integrate seamlessly into your cabinetry, this dishwasher delivers superior wash performance and advanced drying.
Panel Ready
£995.00
- Finish
- Panel Ready
£995.00
In Stock
In Stock
Series 7
Integrated Dishwasher
- Customise with your own front panel and handle to match your kitchen cabinetry
- Eight wash programs from Heavy to Light, including Auto, 60min and Glassware
- Dry+, Sanitise, Half Load and Intensive modifiers provide extra wash options
- Wi-Fi enabled, it connects with the SmartHQ™ app for remote control and notifications
*Images for illustration only. No door panels or handles included.
Height
820 - 880mm
Width
597mm
Depth
554mm
DESIGNED TO FIT
SEAMLESS INTEGRATION
Customise your dishwasher with a panel and handle to match your cabinetry, ensuring a seamless kitchen finish.
PERFECT RESULTS

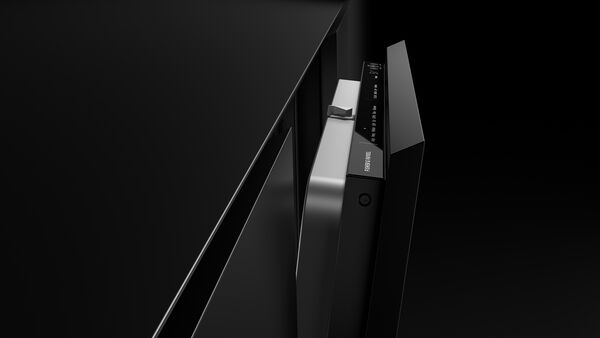

Advanced Drying
For beautifully dry dishes every time, this dishwasher features an advanced drying system with fan-assisted drying and Auto Door Open at the cycle's end. This releases excess steam, making dishes ready for use or storage. An innovative air curtain channels steam away from the adjacent benchtop, protecting your cabinetry.
PERFECT RESULTS
A RELIABLE CLEAN
This dishwasher offers eight wash programs including Auto, which automatically senses the optimal wash settings for your dishes. The three-stage filtration system ensures a superior clean, and the rinse aid indicator reminds you to refill for sparkling results.
PERFECT RESULTS

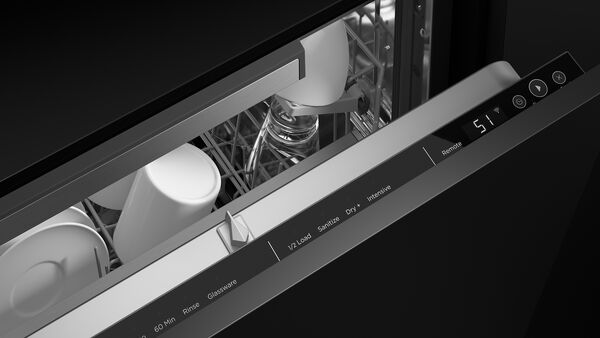

Customise Your Wash
Customise your wash with the Half Load modifier for faster turnaround of partial loads. Sanitise kills 99.99% of bacteria* in the final rinse, and the Dry+ modifier is ideal for plastic dishes. *Certified to NSF/ANSI Standard 184.
BEAUTIFUL TO USE

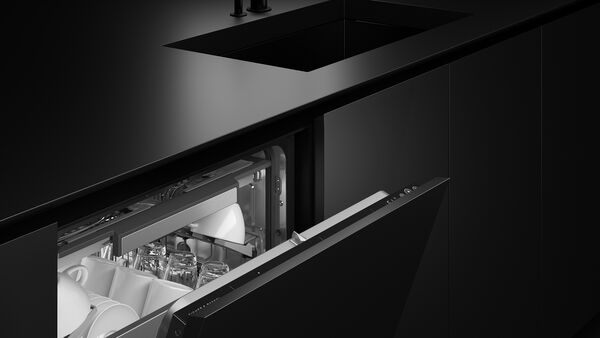

QUIET PERFORMER
Running at a very low decibel rating, this dishwasher operates quietly. Clever technology and simple mechanics ensure greater reliability and superior wash performance with minimal noise.
BEAUTIFUL TO USE

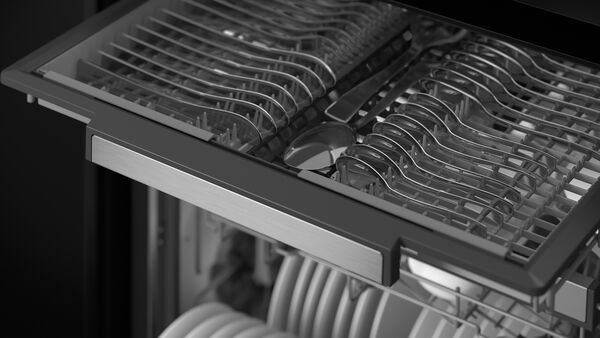

FLEXIBLE LOADING
Designed to accommodate 16 place settings, this dishwasher offers adjustable rack options for flexible loading. It includes a cutlery tray for small utensils, a height-adjustable middle rack, cup holders, and wine glass supports for convenience.
Specifications
- Height
- 820 - 880mm
- Width
- 597mm
- Depth
- 554mm
Accessories (included)
| Accessories (included) Attributes | Value |
|---|---|
| Cutlery basket | |
| Kickstrip |
Accessories (sold separately)
| Accessories (sold separately) Attributes | Value |
|---|---|
| Door panel black stainless steel | ADDW60PB |
| Door panel stainless steel | ADDW60PX |
| Handle kit Classic | AHCL-DDDW-60X |
| Handle kit Contemporary square fine, aluminium | AHD5-OBDD-60SX |
| Handle kit Contemporary square fine, black | AHD5-OBDD-60SB |
Capacity and loading
| Capacity and loading Attributes | Value |
|---|---|
| Accommodates round plates up to (lower basket) | 320mm |
| Accommodates round plates up to (top basket) | 220mm (with cutlery tray), 280mm (cutlery tray removed) |
| Adjustable height, foldable cupracks | |
| Easy lift adjustable upper basket | |
| Fold down tines | |
| Fold down wine racks | |
| Full width cutlery/utensil tray | |
| Wine glass supports with stemware grippers |
Consumption
| Consumption Attributes | Value |
|---|---|
| Energy rating | B |
| Energy usage | 66 kWh/100 cycles |
| In-use energy carbon emissions estimate | 13.1kgCO2e/100 cycles |
| Water usage (per wash cycle) | 9.5L |
Controls
| Controls Attributes | Value |
|---|---|
| Energy saving delay start option of up to 24 hours | |
| Floor light cycle feedback | |
| Internal light | |
| Internal wash selector | |
| Intuitive capacitive touch controls | |
| Keylock | |
| Rinse aid indicator light |
Features
| Features Attributes | Value |
|---|---|
| Air curtain for bench protection | |
| Aquastop | |
| Auto Door Open Dry | |
| Built-in water softener | |
| Fan assisted drying | |
| Flood protection | |
| Fully independent spray arms | |
| Half load option | |
| Internal tub material | Stainless Steel |
| Motor type | BLDC |
| Three-stage filtration system | |
| Variable wash pressure technology |
Performance
| Performance Attributes | Value |
|---|---|
| Noise emissions | 42dBA |
Power requirements
| Power requirements Attributes | Value |
|---|---|
| Amperage | 10A |
| Supply frequency | 50Hz |
| Supply voltage | 220 - 240V |
Product dimensions
| Product dimensions Attributes | Value |
|---|---|
| Depth | 554mm |
| Height | 820 - 880mm |
| Width | 597mm |
Warranty
| Warranty Attributes | Value |
|---|---|
| Parts and labour | 5 years |
Wash Program Modifiers
| Wash Program Modifiers Attributes | Value |
|---|---|
| Dry + | |
| Half-load | |
| Intensive | |
| Sanitise | |
| Wash modifiers | 4 |
Wash Programs
| Wash Programs Attributes | Value |
|---|---|
| 60 min | |
| Auto | |
| Eco | |
| Glassware | |
| Heavy | |
| Light | |
| Medium | |
| Rinse | |
| Wash programs | 8 |
Water connection
| Water connection Attributes | Value |
|---|---|
| Water pressure | 30kPa - 1000 kPa |
| Water supply | 34" BSP (20mm) Connector Water Inlet Hose |
