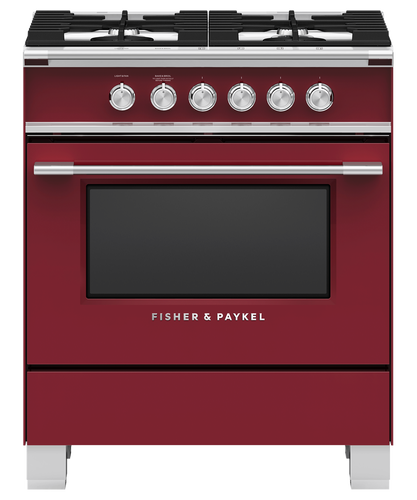

30" Series 7 Classic 4 Burner Gas Range, pdp

30" Series 7 Classic 4 Burner Gas Range gallery image 1.0

30" Series 7 Classic 4 Burner Gas Range gallery image 2.0

30" Series 7 Classic 4 Burner Gas Range gallery image 3.0

30" Series 7 Classic 4 Burner Gas Range gallery image 4.0

30" Series 7 Classic 4 Burner Gas Range gallery image 5.0

OR30SCG4R1

30" Series 7
Classic 4 Burner Gas Range

Reviews

Classic

Create a striking classic kitchen. Your freestanding range has a spacious oven capacity and four gas burners for precise control.

Where to Buy

Finish: Red

Also available in

starting from $5,749.00

Where to Buy

30" Series 7
Classic 4 Burner Gas Range

Four burner gas cooktop with two dual wok burners
Gas oven with 3.5 cu ft total capacity
Three oven functions: Bake, Convection Bake and Maxi Broil

LPG or natural gas compatible

Height 35³⁄₄ - 37⁵⁄₈ "

Width 29⁷⁄₈ "

Depth 25¹⁄₄ "

Features & Benefits

The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

BUILT TO LAST

Design quality

This range has been carefully crafted in every detail from performance to durability using quality materials including the balanced soft-close door and rounded hob rail.

BEAUTIFUL TO USE

Large Capacity Oven

The generous 3.5 cu.ft total capacity oven gives you plenty of space to cook multiple dishes at once, with enough room to fit a 26 lb turkey.

PERFECT RESULTS

Performance power

Precise cooktop controls let you sear or stir fry over instant, powerful heat. Use the high burner power or simmer a delicate sauce using the gentlest of heats.

BEAUTIFUL TO USE

Easy Cleaning

With its durable surface, your cooktop simply needs a quick wipe after cooking to keep it looking good as new for years to come.

Specifications

Height: 35³⁄₄ - 37⁵⁄₈ "

Width: 29⁷⁄₈ "

Depth: 25¹⁄₄ "

Accessories (included)

Accessories (included) Attributes	Value
2-pc grill system (Broil pan and Grill rack)
Broil pan
Chromed shelf runners	1 set
Full extension telescopic shelves	2 sets (part 578776)
Small pot support	1 (part 533981 cast)

Accessories (sold separately)

Accessories (sold separately) Attributes	Value
Hob rear trim	3 ¹⁄₈" (part 81657)
Kick strip, black (optional)	KICKOR30B1

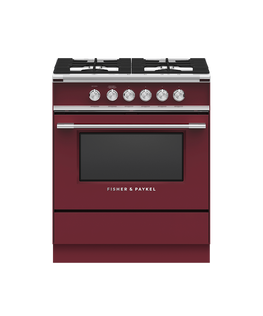

Kick strip, red (optional)	KICKOR30R1
Kick strip, stainless steel (optional)	KICKOR90X1
Kick strip, white (optional)	KICKOR30W1

Burner ratings

Burner ratings Attributes	Value
Dual wok burner inner/outer (LPG)	1000 - 18000BTU
Dual wok burner inner/outer (natural gas)	1000 - 18000BTU
Maximum burner power	18000 BTU
Semi-rapid burner (LPG)	1500 - 7600BTU
Semi-rapid burner (natural gas)	1500 - 8000BTU
Total cooktop power	52000 BTU

Cleaning

Cleaning Attributes	Value
Acid resistant graphite enamel
Removable oven door
Removable shelf runners

Controls

Controls Attributes	Value
Laser etched graphics

Gas Requirements

Gas Requirements Attributes	Value
Supply Pressure (LPG)	11" W.C.P
Supply Pressure (natural gas)	4" W.C.P

Oven features

Oven features Attributes	Value
Auto re-ignition system
Concealed element
Convection
Electronic ignition
Full extension telescopic sliding shelves
Internal light	2 x 25W halogen (rear)
Soft open/close door
Storage drawer

Oven functions

Oven functions Attributes	Value
Convection bake
Number of functions	3

Oven performance

Oven performance Attributes	Value
Bake power	14000 BTU
Broil	11000 BTU
CoolTouch door	Triple glazed

Power requirements

Power requirements Attributes	Value
Connection	3-prong grounding type [NEMA 5-15P plug]
Power supply	120 V, 60Hz
Service	15 A

Product dimensions

Product dimensions Attributes	Value
Depth	25 ¹⁄₄"
Height	35 ³⁄₄ - 37 ⁵⁄₈"
Width	29 ⁷⁄₈"

Rangetop features

Rangetop features Attributes	Value
Hob rail
Hob rear trim	3 ¹⁄₈" (part 81657)
LPG/Natural gas compatible
Sealed range top

Rangetop Performance

Rangetop Performance Attributes	Value
Number of burners	4

Safety

Safety Attributes	Value
ADA compliant
Advanced cooling system
Anti-tilt bracket
Balanced oven door
Full extension telescopic sliding shelves
Non-tip shelves
Spill containment	¹⁄₂ gallon
