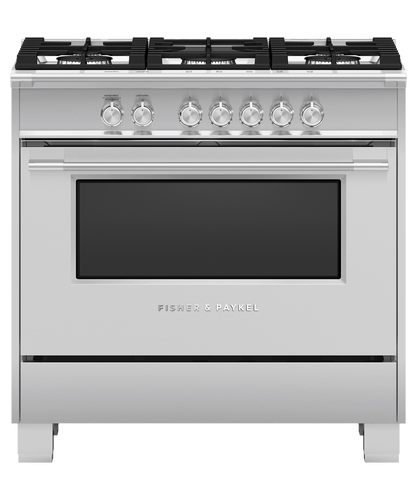

36" Series 7 Classic 5 Burner Gas Range, pdp
OR36SCG4X1

36" Series 7
Classic 5 Burner Gas Range

5 out of 5 Customer Rating Reviews
  • Classic
Make your range a focal point. With a large capacity oven and five burners, this is the perfect way to cook for a crowd.
36" Series 7
Classic 5 Burner Gas Range
Stainless Steel
Where to Buy
Finish
Stainless Steel
Also available in
starting from $5,949.00
Where to Buy

36" Series 7
Classic 5 Burner Gas Range

  • Five burner gas cooktop, including one dual ring and two triple ring wok burners
  • Gas oven with 4.9 cu ft total capacity and three functions including Bake and Broil

LPG or natural gas compatible

Height 353⁄4 - 371⁄4 "
Width 357⁄8 "
Depth 251⁄4 "

RECEIVE UP TO 15% REBATE

Features & Benefits

The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

Design Quality
BUILT TO LAST

Design Quality

This range has been carefully crafted in every detail from performance to durability using quality materials including the balanced soft-close door and rounded hob rail.

Large Capacity Oven
BEAUTIFUL TO USE

Large Capacity Oven

The generous 4.9 cu.ft total capacity oven gives you plenty of space to cook multiple dishes at once, with enough room to fit a 32 lb turkey.

Performance Power
PERFECT RESULTS

Performance Power

Precise cooktop controls let you sear or stir fry over instant, powerful heat. Use the high burner power or simmer a delicate sauce using the gentlest of heats.

Easy cleaning
PERFECT RESULTS

Easy cleaning

With its durable surface, your cooktop simply needs a quick wipe after cooking to keep it looking good as new for years to come.

Specifications

heading.dimensions.header
Height
353⁄4 - 371⁄4 "
Width
357⁄8 "
Depth
251⁄4 "

Accessories (included)

Accessories (included) Attributes Value
2-pc grill system (Broil pan and Grill rack)
Broil pan
Broil rack
Chromed shelf runners 1 set
Full extension telescopic shelves 2 sets (part 578744)
Small pot support 1 (part 533981 cast)

Accessories (sold separately)

Accessories (sold separately) Attributes Value
Kick strip, black (optional) KICKOR36B1
Kick strip, red (optional) KICKOR36R1
Kick strip, stainless steel (optional) KICKOR36X1
Kick strip, white (optional) KICKOR36W1

Burner ratings

Burner ratings Attributes Value
Dual wok burner inner/outer (LPG) 1000 - 18000BTU
Dual wok burner inner/outer (natural gas) 1000 - 18000BTU
Maximum burner power 18000 BTU
Semi-rapid burner (LPG) 7600BTU
Semi-rapid burner (natural gas) 8000BTU
Total cooktop power 62000 BTU
Triple ring wok burner (LPG) x2 6100 - 12000BTU
Triple ring wok burner (natural gas) x2 6100 - 14000BTU

Capacity

Capacity Attributes Value
Shelf positions 7

Cleaning

Cleaning Attributes Value
Acid resistant graphite enamel
Removable oven door
Removable shelf runners

Controls

Controls Attributes Value
Laser etched graphics

Gas Requirements

Gas Requirements Attributes Value
Supply Pressure (LPG) 11" W.C.P
Supply Pressure (natural gas) 4" W.C.P

Oven features

Oven features Attributes Value
Auto re-ignition system
Concealed element
Convection
Electronic ignition
Full extension telescopic sliding shelves
Internal light 4 x 25W halogen (2 side & 2 top)
Soft open/close door
Storage drawer

Oven functions

Oven functions Attributes Value
Bake
Broil
Convection bake
Number of functions 3

Oven performance

Oven performance Attributes Value
Bake power 17000 BTU
Broil 13000 BTU
CoolTouch door Quadruple glazed

Power requirements

Power requirements Attributes Value
Amperage 15A
Supply frequency 60Hz

Product dimensions

Product dimensions Attributes Value
Depth 25 1⁄4"
Height 35 3⁄4 - 37 1⁄4"
Width 35 7⁄8"

Rangetop features

Rangetop features Attributes Value
Hob rail
LPG/Natural gas compatible
Sealed range top

Rangetop Performance

Rangetop Performance Attributes Value
Number of burners 5

Safety

Safety Attributes Value
ADA compliant
Advanced cooling system
Anti-tilt bracket
Balanced oven door
Full extension telescopic shelves 2 sets (part 578744)
Full extension telescopic sliding shelves
Non-tip shelves
Spill containment 5⁄8 gallon
