36" Series 9 Classic 5 Zone Induction Self-Cleaning Range, 2 SmartZones, pdp
OR36SCI6W1

36" Series 9
Classic 5 Zone Induction Self-Cleaning Range

2 SmartZones

4.2 out of 5 Customer Rating Reviews
  • Classic
Heritage styling meets modern performance, including an induction cooktop with the ability to pair zones to create a large cook zone.
36" Series 9
Classic 5 Zone Induction Self-Cleaning Range
White
Where to Buy
Finish
White
Also available in
starting from $9,349.00
Where to Buy

36" Series 9
Classic 5 Zone Induction Self-Cleaning Range

2 SmartZones

  • Five induction cooking zones that can be bridged to form two "SmartZones"
  • Convection oven with 4.9 cu ft total capacity and nine oven functions including Roast and Aero™Pastry
  • Self-cleaning function breaks down food residue for an easy clean
  • Non-tip full-extension shelves for safe removal of hot dishes
Height 353⁄4 - 371⁄4 "
Width 357⁄8 "
Depth 251⁄4 "

RECEIVE UP TO 15% REBATE

Features & Benefits

The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

Outstanding Performance
PERFECT RESULTS

Outstanding Performance

Discover the flexibility to get creative in the kitchen with nine oven functions including Bake, Roast, and Aero™ Pastry with Pizza Bake. The AeroTech™ system circulates air evenly throughout the entire oven, perfect for multi-shelf cooking.

Power & Control
PERFECT RESULTS

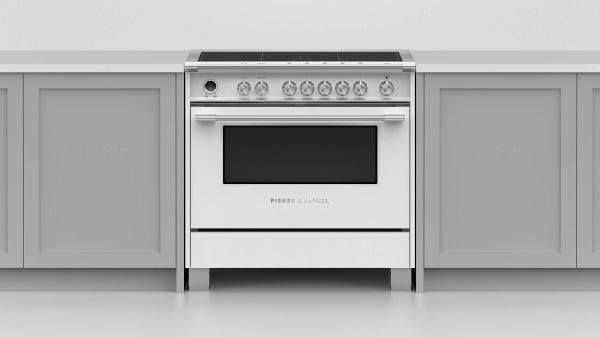

Power & Control

The induction cooktop provides instant and immediate control from the highest to the gentlest heat. The finely tuned cooktop controls let you sear, stir fry or simmer a delicate sauce to perfection.

Quality And Durability
BUILT TO LAST

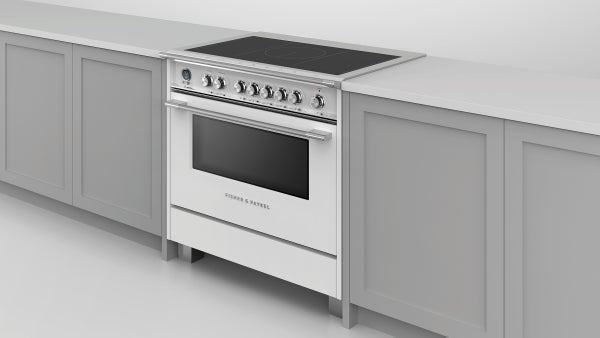

Quality And Durability

Every detail has been carefully crafted, from the heritage design cues, to the solid, perfectly balanced soft-close door, and to the chromed cast zinc dials. They all add up to an exceptional, premium range.

Large Capacity
PERFECT RESULTS

Large Capacity

The large 4.9 cu ft total capacity for this range gives you plenty of space to cook multiple dishes at the same time.

Easy To Clean
BEAUTIFUL TO USE

Easy To Clean

The self-clean function reduces grease and food residue to an easily removable light ash and the cooktop simply needs a quick wipe to keep it looking good as new. The oven door and runners can also be removed for easy cleaning.

Safe And Sound
BEAUTIFUL TO USE

Safe And Sound

Designed for your safety and convenience, this range features full extension telescopic sliding shelves, a quadruple-glazed CoolTouch door, and a child lock. Induction cooktops heat only the cookware, not the elements, so they are much safer in family kitchens.

Specifications

Height
353⁄4 - 371⁄4 "
Width
357⁄8 "
Depth
251⁄4 "

Accessories (included)

Accessories (included) Attributes Value
2-pc grill system (Broil pan and Grill rack)
Broil pan
Broil rack
Full extension sliding shelves 2 sets (part 578755)
Full extension telescopic shelves 2 sets (part 578744)

Accessories (sold separately)

Accessories (sold separately) Attributes Value
Hob rear trim 3" (part 81654)
Kick strip, black (optional) KICKOR36B1
Kick strip, red (optional) KICKOR36R1
Kick strip, stainless steel (optional) KICKOR36X1
Kick strip, white (optional) KICKOR36W1

Capacity

Capacity Attributes Value
Shelf positions 7

Cleaning

Cleaning Attributes Value
Acid resistant graphite enamel
Drop down broil element
Flat easy clean glass surface
Pyrolytic proof shelf runners
Pyrolytic self-clean
Removable oven door
Removable shelf runners

Controls

Controls Attributes Value
Audio feedback
Automatic cooking/minute timer
Automatic pre-set temperatures
Celsius/Fahrenheit temperature
Electronic clock
High resolution display
Laser etched graphics
Precise electronic temperature control
Sabbath mode
Toughened fused glass graphics
Turned stainless steel clock buttons
Turned stainless steel clock crown (dial)

Oven features

Oven features Attributes Value
AeroTech™ technology
Automatic rapid pre-heat
Bright chromed, cast zinc dials with illuminated halos
Concealed element
Convection
Electronic oven control
Full extension telescopic sliding shelves
Internal light 4 x 25W halogen (2 side & 2 top)
Soft open/close door
Turned stainless steel clock dial
Twin cavity fans
Warming drawer

Oven functions

Oven functions Attributes Value
Aero Bake
Aero Broil
Aero™ Pastry with Pizza mode
Bake
Number of functions 9
Rapid proof
Roast
Self-clean function
True Aero

Oven performance

Oven performance Attributes Value
Broil power 4300W
CoolTouch door Quadruple glazed
Warming drawer power 220W

Power requirements

Power requirements Attributes Value
Connection 4-prong [NEMA 14-50P power cord]
Power supply 120 / 240 V or 120 / 208 V, 60 Hz
Service 40 A

Product dimensions

Product dimensions Attributes Value
Depth 25 1⁄4"
Height 35 3⁄4 - 37 1⁄4"
Width 35 7⁄8"

Rangetop features

Rangetop features Attributes Value
Auto heat reduce
Dual zones
Gentle heat
Heat settings 9
Hob rear trim 3" (part 81654)
Induction cooking technology
SmartZone 1
Zone bridging

Rangetop Performance

Rangetop Performance Attributes Value
Centre 5500W
Left front 3700W
Left rear 3700W
Number of cooking zones 5
PowerBoost

Safety

Safety Attributes Value
ADA compliant
Advanced cooling system
Anti-tilt bracket
Balanced oven door
Catalytic venting system
Child lock
CoolTouch door
Full extension telescopic sliding shelves
Non-tip shelves
Pan detection system
Safety time out
Spill containment 1⁄8 gallon
Spillage auto off
Surface hot indicators
