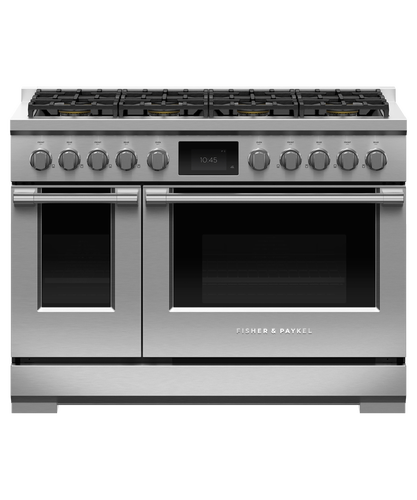

48" Series 9 Professional 8 Burner Dual Fuel Self-Cleaning Range, Natural Gas, pdp
RDV3-488-N

48" Series 9
Professional Dual Fuel 8 Burner Self-Cleaning Range, Natural Gas

Natural Gas

4.5 out of 5 Customer Rating Reviews
  • Professional
  • Smart
With intuitive touchscreen and specialized cooking functions across two ovens, this range is a stand-out addition to your kitchen.
48" Series 9
Professional Dual Fuel 8 Burner Self-Cleaning Range, Natural Gas
Stainless Steel, Natural gas
Where to Buy
Finish
Stainless Steel
Fuel Type
Natural gas
Where to Buy

48" Series 9
Professional Dual Fuel 8 Burner Self-Cleaning Range, Natural Gas

Natural Gas

  • Guided cooking using your touchscreen makes it simple to cook by food, function or recipe.
  • Top burner heat of 23,500 BTU, for seriously fast boiling
  • 6.9 cu ft total oven capacity across two oven cavities
  • Beautiful LED halo-illuminated dials provide information at a glance
Height 353⁄4 - 363⁄4 "
Width 477⁄8 "
Depth 291⁄8 "

Features & Benefits

The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

PERFECT RESULTS

Cook With Confidence

Our touchscreen interface provides an intuitive guided cooking experience that helps deliver perfect results, whether you’ve been cooking all your life or just starting out. Cook with a favorite method, a hero ingredient, or a go-to cooking function or recipe. The screen tilts for improved ergonomics and optimal visibility while cooking.

Generous Capacity
PERFECT RESULTS

Generous Capacity

Two independently operating cavities provide a large total capacity of 4.8 cu. ft. in the main cavity and 2.1 cu. ft. in the secondary. That’s enough room for a 32 lb turkey in one oven, and your sides in the other.

Cooking Flexibility
PERFECT RESULTS

Cooking Flexibility

No matter what you're cooking, you've got the right heat to get perfect results. Each of the 15 oven functions in the main cavity and 11 in the secondary have been extensively researched and carefully designed to cater to a broad range of dishes and cooking styles. The handy food probe helps you monitor your progress.

Cooktop Power
PERFECT RESULTS

Cooktop Power

Sealed dual flow burners deliver cooktop power up to 23,500 BTU for seriously fast boiling, and precise 140°F full surface, low temperature cooking with the gentlest of flames.

BUILT TO LAST

Design Quality

This range has craftsmanship in every detail, with real stainless steel, cast-iron grates, and beautifully weighted, halo illuminated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful cooktop, this Range is built to last.

Easy To Clean
BEAUTIFUL TO USE

Easy To Clean

The oven features a self-cleaning function and self-clean proof side racks, which don't need to be removed when using this function.

Specifications

heading.dimensions.header
Height
353⁄4 - 363⁄4 "
Width
477⁄8 "
Depth
291⁄8 "

Accessories (included)

Accessories (included) Attributes Value
Adjustable feet covers
Branded coin end cap

Accessories (sold separately)

Accessories (sold separately) Attributes Value
Square handle option AH-R48

Burner ratings

Burner ratings Attributes Value
Maximum burner power 23500 BTU
Power back centre 18500BTU
Power back centre (2) 18500BTU
Power back left 18500BTU
Power back right 18500BTU
Power front centre 18500BTU
Power front centre (2) 18500BTU
Power front left 23500BTU
Power front right 23500BTU
Total cooktop power 158000 BTU

Capacity

Capacity Attributes Value
Shelf positions (main oven) 5
Shelf positions (second oven) 5
Total capacity (main oven) 4.8cu ft
Total capacity second oven 2.1cu ft
Usable capacity (main oven) 3.8cu ft

Cleaning

Cleaning Attributes Value
Easy clean porcelain basepan
Pyrolytic self-clean

Controls

Controls Attributes Value
Dial with illuminated halo
Dual control oven dials
Electric circuit 4 wire
High resolution display
Metal illuminated dials
Multi-language interface
Precise cooking with food probe
Recipe and food based functions
Sabbath mode
Smart Appliance
Tilting touch screen interface
Wi-Fi connectivity

Gas Requirements

Gas Requirements Attributes Value
Fitting and pipe ½ NPT, min. ⅝" ∅ flex line
Supply Pressure (natural gas) 6" to 9" W.C

Oven features

Oven features Attributes Value
Auto re-ignition system
Concealed element
Electronic oven control
Full extension telescopic sliding shelves
Internal light
Self-clean proof side racks
Titanium coated, illuminated metal dials

Oven functions

Oven functions Attributes Value
Air fry
Bake
Classic bake
Clean
Convection bake
Convection broil
Dehydrate
Maxi Broil
Number of functions 15
Pastry bake
Pizza bake
Rapid proof
Roast
Slow cook
True convection
Warm

Oven performance

Oven performance Attributes Value
Bake power 4600
Broil 3600W
Main oven - True convection power 2500W

Power requirements

Power requirements Attributes Value
Connection 4-prong grounding type [NEMA 14-50 plug]
Power supply 120 / 240 V, 60 Hz
Service 50 A

Product dimensions

Product dimensions Attributes Value
Depth 29 1⁄8"
Height 35 3⁄4 - 36 3⁄4"
Width 47 7⁄8"

Rangetop features

Rangetop features Attributes Value
Sealed range top
Vent trim included

Recommended Back Guards Ventilation

Recommended Back Guards Ventilation Attributes Value
Combustible situation BGRV3-3048H
Non combustible situation BGRV2-3048 / BGRV2-1248
Recommended hood HCB48-12_N (48"" Professional Range Hood, Dual Blower)

Safety

Safety Attributes Value
ADA compliant

Secondary oven features

Secondary oven features Attributes Value
3/4 Extension racks 2
Concealed element
Electronic oven control
Food probe
Internal light

Secondary oven functions

Secondary oven functions Attributes Value
Air fry
Bake
Classic bake
Convection bake
Convection broil
Maxi broil
Number of secondary oven functions 11
Pastry bake
Pizza bake
Rapid proof
Roast
Warm
