Home Dishwashing Integrated Dishwashers

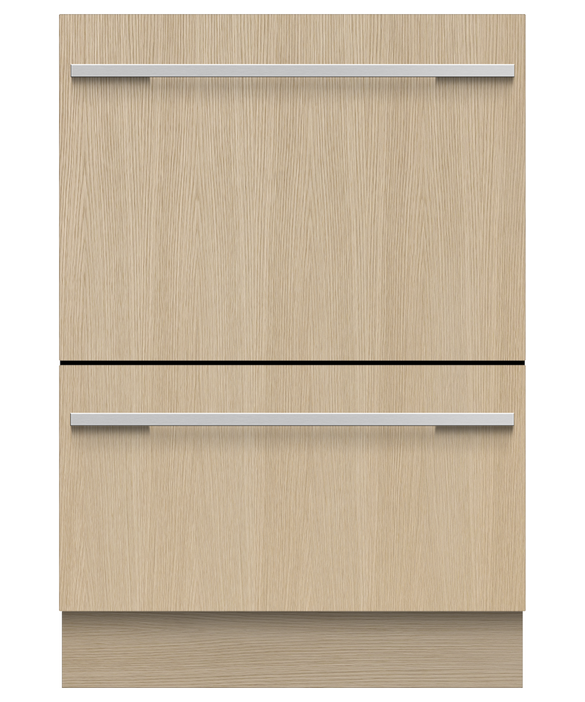

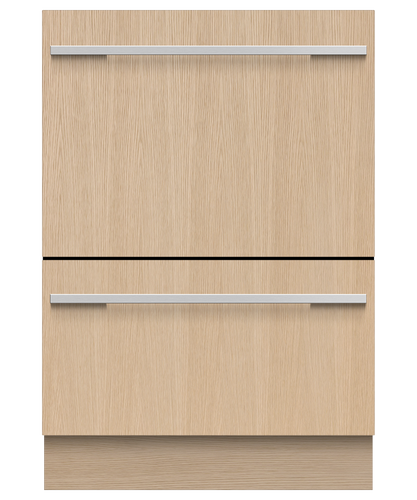

Series 9, Integrated Tall Double DishDrawer™ Dishwasher, pdp
DD24DHTI9 N

Series 9
Integrated Tall Double DishDrawer™ Dishwasher

5 out of 5 Customer Rating Reviews
  • Integrated
  • Smart
Doing the dishes got easier. Load one drawer while the other washes - with the top drawer fitting your large dinner plates easily.
In-use Energy Carbon Emissions Estimate
104.8kgCO2e/year
Series 9
Integrated Tall Double DishDrawer™ Dishwasher
Panel Ready
Where to Buy
Finish
Panel Ready
starting from $2,049.00
Where to Buy

Series 9
Integrated Tall Double DishDrawer™ Dishwasher

  • Knock to pause function is perfect if you miss a dish
  • Six wash programs, as well as additional Quick wash, Sanitize and Extra Dry options
  • Built-in water softener improves wash performance by reducing unwanted minerals in the water
  • Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory
Height 34 - 363⁄8 "
Width 239⁄16 "
Depth 221⁄2 "

RECEIVE UP TO 15% REBATE

Features & Benefits

The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

SEAMLESS INTEGRATION
DESIGNED TO FIT

SEAMLESS INTEGRATION

Slide your DishDrawer™ Dishwasher into an existing kitchen space or integrate into kitchen cabinetry, for a seamless look whilst delivering superior dish care.

Ease of use
BEAUTIFUL TO USE

Ease of use

DishDrawer™ Dishwashers are as easy to open and close as kitchen drawers and can be conveniently positioned at bench height for ease of loading and minimal bending. Flexible racking allows you to make adjustments to fit in a variety of dishes.

Independent wash
PERFECT RESULTS

Independent wash

With the ability to use both drawers independently and select different wash programs the DishDrawer™ Dishwasher can wash everything from fine glass and crystal to heavily soiled pots and pans.

TRUE HALF LOAD
BEAUTIFUL TO USE

TRUE HALF LOAD

Each drawer holds a true half load for guilt-free small washes and fast turnaround of your dishes. Both drawers operate independently so different wash cycles can run simultaneously to accommodate a variety of loads.

Quick, Sanitize and Extra Dry options
PERFECT RESULTS

Quick, Sanitize and Extra Dry options

The Quick wash modifier delivers a faster wash while maintaining performance. The Sanitize option provides extra protection killing 99.9% of bacteria in the final rinse. The Extra Dry setting is perfect for plastic dishes.

Knock to pause
BEAUTIFUL TO USE

Knock to pause

Instead of needing a remote control, these DishDrawer™ Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher which can be re-started again by using the start/play button.

Quiet performer
BEAUTIFUL TO USE

Quiet performer

Running at a very low decibel rating, these DishDrawer™ dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.

Specifications

heading.dimensions.header
Height
34 - 363⁄8 "
Width
239⁄16 "
Depth
221⁄2 "

Accessories (included)

Accessories (included) Attributes Value
Kickstrip
Knife clip and multipurpose clip

Accessories (sold separately)

Accessories (sold separately) Attributes Value
Door panel recessed handle matte black glass ADDD24DTZB
Door panel recessed handle stainless steel ADDD24DTNX
Door panel stainless steel ADDD24DTPX
Handle kit Classic AHCL-DDDW-24X
Handle kit Contemporary round, aluminium AHS-OBDD-60S
Handle kit Contemporary square fine, aluminium AHD5-OBDD-60SX
Handle kit Contemporary square fine, black AHD5-OBDD-60SB
Handle kit Contemporary square, aluminium AHD3-OBDD-60S
Handle kit Professional round flush AHP3-DWDD-SX
Handle kit Professional round flush, Brass off-stands AHP3DDDW24BA
Handle kit Professional round flush, Dark Copper off-stands AHP3DDDW24DC

Capacity and loading

Capacity and loading Attributes Value
Accommodates round plates up to 12.25" (top) 11" (bottom)
Adjustable height, foldable cupracks
Fold down tines
Pitch adjustable tines
Place settings 14
Place settings per drawer 7

Consumption

Consumption Attributes Value
Energy usage 286kWh/year
In-use energy carbon emissions estimate 104.8kgCO2e/year
Water usage (per wash cycle) 3.6 gal running both tubs

Controls

Controls Attributes Value
Electronic fault/Diagnostic indicator
End of cycle beeps
Energy saving delay start option of up to 12 hours
Internal wash selector
Keylock
Knock to pause
Rinse aid indicator light
Smart Appliance

Features

Features Attributes Value
Built-in water softener
Fan assisted drying
Flow through detergent dispenser
Motor type BLDC
Quiet operation
SmartDrive™ technology

Performance

Performance Attributes Value
Noise on standard cycle top drawer 43dBA

Power requirements

Power requirements Attributes Value
Amperage 10A
Electric circuit 3 wire
Rated current 15A
Supply frequency 60Hz
Supply voltage 100 - 120V

Product dimensions

Product dimensions Attributes Value
Depth 22 1⁄2"
Height 34 - 36 3⁄8"
Width 23 9⁄16"

Warranty

Warranty Attributes Value
Parts and labor Limited 2 years

Wash Program Modifiers

Wash Program Modifiers Attributes Value
Extra Dry
Quick
Sanitize

Wash Programs

Wash Programs Attributes Value
Delicate
Eco
Fast
Heavy
Medium
Rinse
Wash programs 6

Water connection

Water connection Attributes Value
Supplied hose to suit 3/8" (9mm) male compression fitting
Water pressure 100kPa - 1000kPa
Water supply 3⁄8" to suit Male Compression Fitting

Resources

Please note: Videos are not for downloading purposes

Design Planning

CAD Downloads

General

Installation

Customer Reviews
