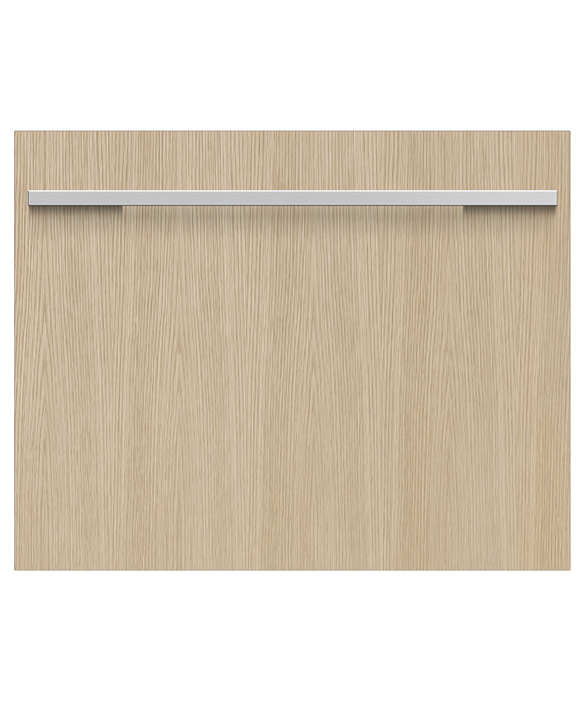

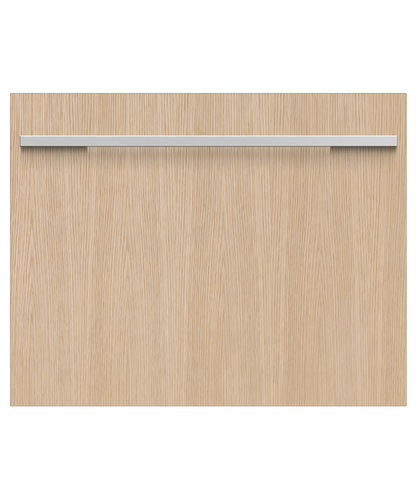

Series 9, Integrated Tall Single DishDrawer™ Dishwasher, pdp
DD24SHTI9 N

Series 9
Integrated Tall Single DishDrawer™ Dishwasher

5 out of 5 Customer Rating Reviews
  • Integrated
  • Smart
Designed to fit your full-sized dinner plates, this DishDrawer™ can be placed anywhere in your kitchen, integrating seamlessly.
55.7kgCO2e/year
Finish
Panel Ready
starting from $1,149.00

Series 9
Integrated Tall Single DishDrawer™ Dishwasher

  • Knock to pause function is perfect if you miss a dish
  • Six wash programs, as well as additional Quick wash, Sanitize and Extra Dry options
  • Built-in water softener improves wash performance by reducing unwanted minerals in the water
  • Customize with your own kitchen cabinetry or purchase our stainless steel door panel accessory
Height 1778 "
Width 23916 "
Depth 2134 "

Specifications

heading.dimensions.header
Height
1778 "
Width
23916 "
Depth
2134 "

Accessories (included)

Accessories (included) Attributes Value
Cutlery basket
Knife clip and multipurpose clip

Accessories (sold separately)

Accessories (sold separately) Attributes Value
Door panel recessed handle matte black glass ADDD24STZB
Door panel recessed handle stainless steel ADDD24STNX
Door panel stainless steel ADDD24STPX
Handle kit Classic AHCL-DDDW-24X
Handle kit Contemporary round, aluminium AHS-OBDD-60S
Handle kit Contemporary square fine, aluminium AHD5-OBDD-60SX
Handle kit Contemporary square fine, black AHD5-OBDD-60SB
Handle kit Contemporary square, aluminium AHD3-OBDD-60S
Handle kit Professional round flush AHP3-DWDD-SX
Handle kit Professional round flush, Brass off-stands AHP3DDDW24BA
Handle kit Professional round flush, Dark Copper off-stands AHP3DDDW24DC

Capacity and loading

Capacity and loading Attributes Value
Accommodates round plates up to 12.25"
Adjustable height, foldable cupracks
Fold down tines
Pitch adjustable tines
Place settings 7

Consumption

Consumption Attributes Value
Energy usage 152kWh/year
In-use energy carbon emissions estimate 55.7kgCO2e/year
Water usage (per wash cycle) 1.79 gal

Controls

Controls Attributes Value
Electronic fault/Diagnostic indicator
End of cycle beeps
Energy saving delay start option of up to 12 hours
Internal wash selector
Keylock
Knock to pause
Rinse aid indicator light
Smart Appliance

Features

Features Attributes Value
Built-in water softener
Fan assisted drying
Flow through detergent dispenser
Motor type BLDC
Quiet operation
SmartDrive™ technology

Performance

Performance Attributes Value
Noise emissions 43dBA

Power requirements

Power requirements Attributes Value
Amperage 5A
Electric circuit 3 wire
Rated current 15A
Supply frequency 60Hz
Supply voltage 100 - 120V

Product dimensions

Product dimensions Attributes Value
Depth 21 34"
Height 17 78"
Width 23 916"

Warranty

Warranty Attributes Value
Parts and labor Limited 2 years

Wash Program Modifiers

Wash Program Modifiers Attributes Value
Extra Dry
Quick
Sanitize
Wash modifiers 3

Wash Programs

Wash Programs Attributes Value
Delicate
Eco
Fast
Heavy
Medium
Rinse
Wash programs 6

Water connection

Water connection Attributes Value
Supplied hose to suit 3/8" (9mm) male compression fitting
Water pressure 100kPa - 1000kPa
Water supply 38" to suit Male Compression Fitting
