Water Filter

Replacement Instructions

All ice and water refrigeration products using water filters 847200 & 847201.

Safety information

Refrigerators with External Filters

Removing the old filter

Note: It is not necessary to turn the water supply off when installing the water filter. It is easier to remove the water filter with the water turned on.

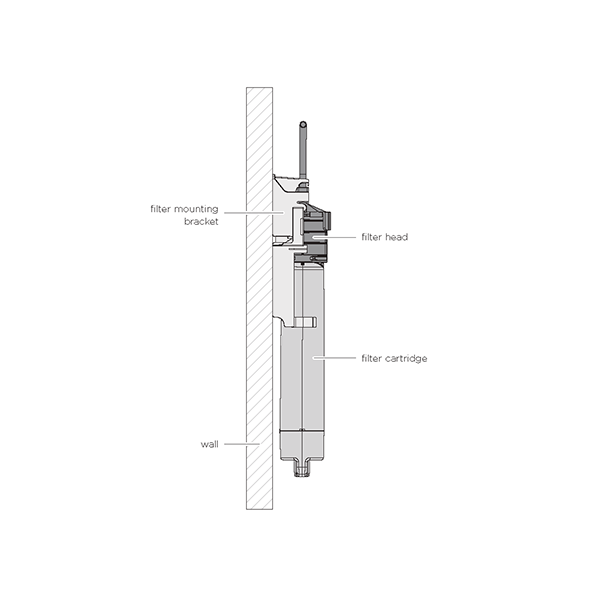

diagram showing a water filter attached to the wall

External water filter attached to wall.

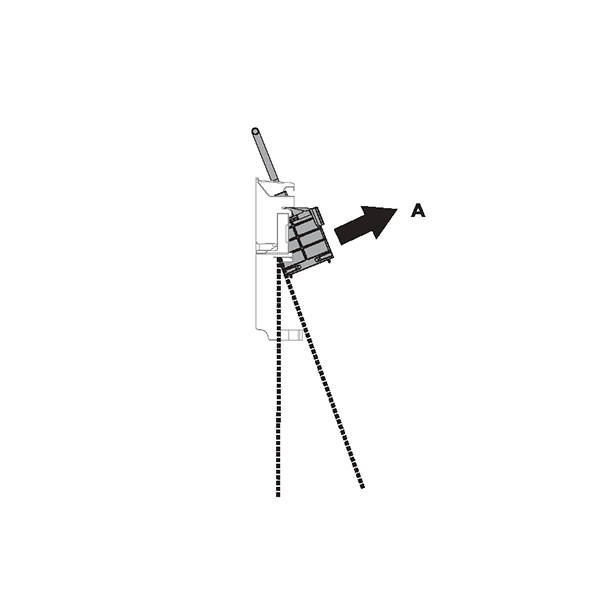

diagram showing how to detach a water filter from the wall
  1. Hold the base of the filter firmly and pull towards you. The filter will tilt towards you from the bracket ( A )

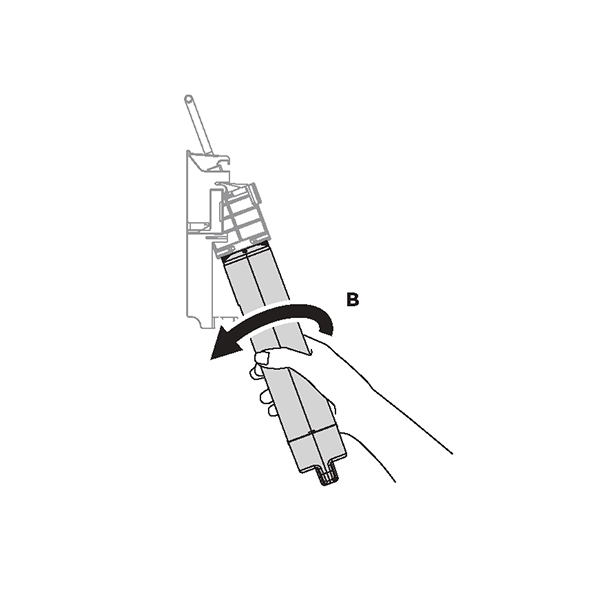

diagram showing how to rotate a water filter to detach it from the filter head
  1. Rotate the filter counterclockwise until it releasees from the filter head ( B ).
    • If the filter is difficult to remove, run water through the filter by dispensing water

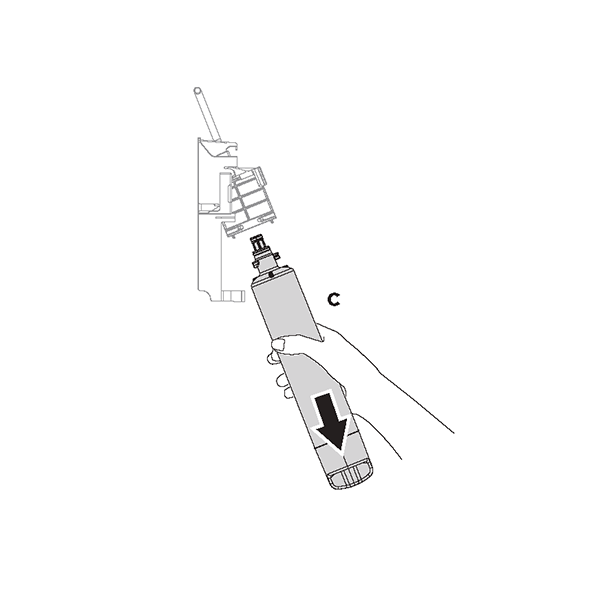

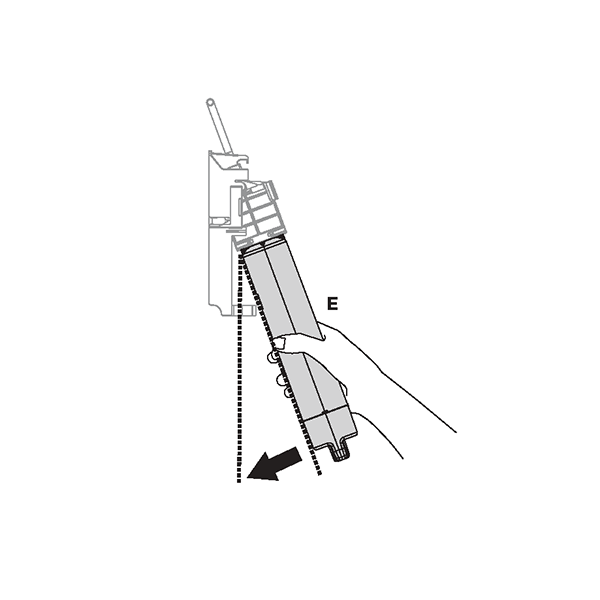

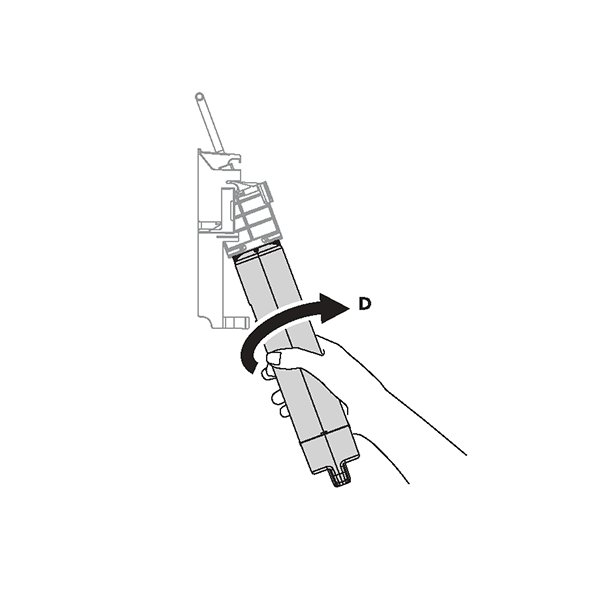

diagram showing a hand removing a water filter by pulling down
  1. Pull down vertically to remove the filter from the bracket ( C ). Discard the old filter
    • A small amount of water will drip after you remove the filter. This is normal.

Installing the new filter

Note: It is not necessary to turn the water supply off when installing the water filter.

diagram showing a filter head attached to a wall
  1. Remove the plastic wrapping from the new filter

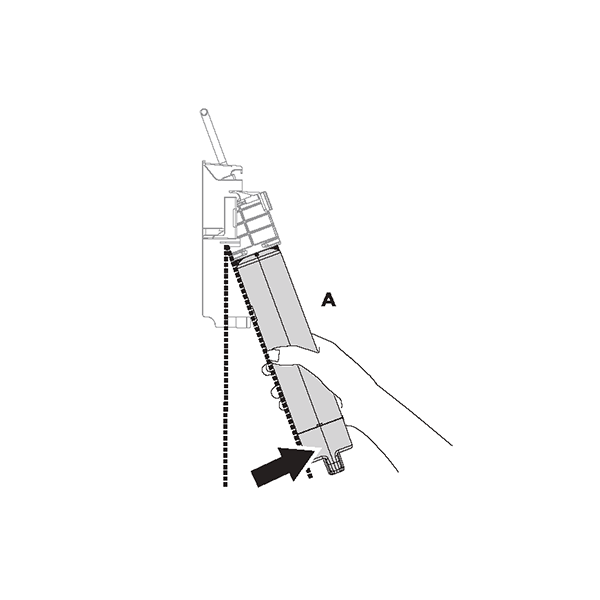

  2. Pull the filter head towards you ( A )

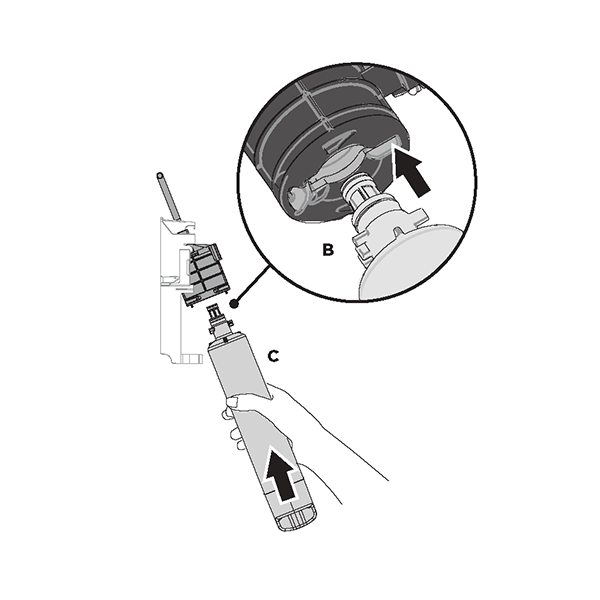

diagram showing the alignment of a water filter to a filter head
  1. Align the filter correctly ( B ). Insert the filter into the filter head ( C )
diagram showing how to rotate a water filter to detach it from the filter head
  1. Push the filter firmly all the way into the filter head then rotate the filter clockwise 90° until it locks into place ( D ).
    • If the filter will not turn, ensure the filter is correctly aligned ( B ) to allow the filter to be pushed firmly into the filter head.
    • Ensure the filter is fully rotated 90° to allow the water to flow.
diagram showing how to attach a water filter to the filter head
  1. Push the entire filter back into the bracket ( E ).

IMPORTANT!
After installation, the water filter MUST be flushed. Refer to flushing the water filter for more details.

Freestanding Refrigerators

For RF605, RF203, RF523, and RF172 Models

Removing the old filter

Note: it is not necessary to turn the water supply off when removing the water filter. It is easier to remove the water filter with the water turned on.

diagram of a freestanding refrigerator

The filter is located internally at the back top right corner of the refrigerator.

diagram of a close up of the back of a refrigerator showing the filter cover
  1. Find the filter cover on the back wall, top right of your refrigerator
  2. Pull the tab ( A ) at the bottom of the cover towards you to release. The cover will slide down upon release

Note: Remove the top shelf if you need more space while removing the filter.

diagram showing how to remove a water filter from the filter base
  1. Hold the base of the filter firmly and pull towards you ( B ).
diagram showing which direction to rotate a water filter for a freestanding refrigerator
  1. Rotate the filter counterclockwise 90°. The filter should release from the filter head ( C ). If it does not, pull the filter toward you.
diagram showing how to remove a water filter
  1. Pull out the filter ( D ) to remove it from the filter head. Discard the old filter.
    • If the filter is difficult to remove, run water through the filter by dispensing water.
    • A small amount of water will drip after you remove the filter. This is normal.

Installing the new filter

Note: It is not necessary to turn the water supply off when installing the water filter.

diagram with a close up showing the correct alignment of a water filter to a filter head
  1. Remove the plastic wrapping from the new filter
  2. Align the filter correctly ( A ). Insert the filter into the filter head
diagram showing which direction to rotate a filter head to insert
  1. Push the filter firmly all the way into the filter head then rotate the filter clockwise 90° until it locks into place ( B )
    • If the filter will not turn, ensure the filter is correctly aligned ( A ), to allow the filter to be pushed firmly into the filter head.
    • Ensure the filter is fully rotated 90° to allow the water to flow
diagram showing a water filter being pushed back into a bracket
  1. Push the entire filter back into the bracket ( C ).
diagram showing a filter cover being re-attached
  1. Push the cover up and into the slots at the top of the filter housing until it clicks and the base locks firmly into place ( D )

IMPORTANT!
After installation, the water filter MUST be flushed. Refer to flushing the water filter for more details.

For RF730Q Models

Removing the old filter

Note: It is not necessary to turn the water supply off when installing the water filter. It is easier to remove the water filter with the water turned on.

water filter location within filter hatch between the produce bins.
  1. Locate the filter hatch between the two produce bins inside the fresh food compartment. Lift the hatch to access the filter tool ( A )
diagram showing water filter with clockwise rotation

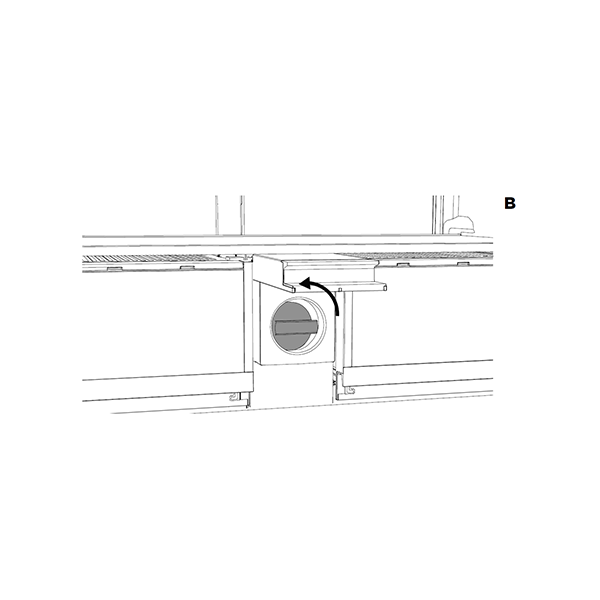

  1. Turn the filter tool 90° counterclockwise to the unlock position ( B )
diagram showing water filter being removed from the filter casing
  1. Pull out the filter from the filter casing. Discard the old filter ( C ).
    • If you have difficulty removing the filter, an additional tool may be required e.g. pliers (not supplied).

Installing the new filter

Note: It is not necessary to turn the water supply off when installing the water filter.

diagram showing an empty filter casing

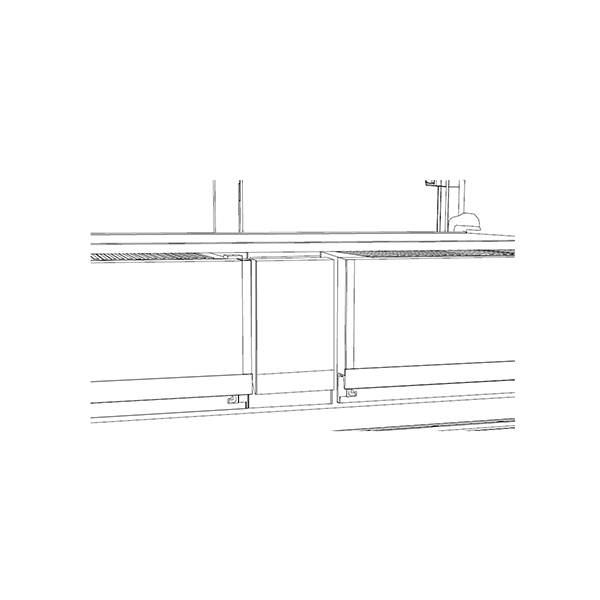

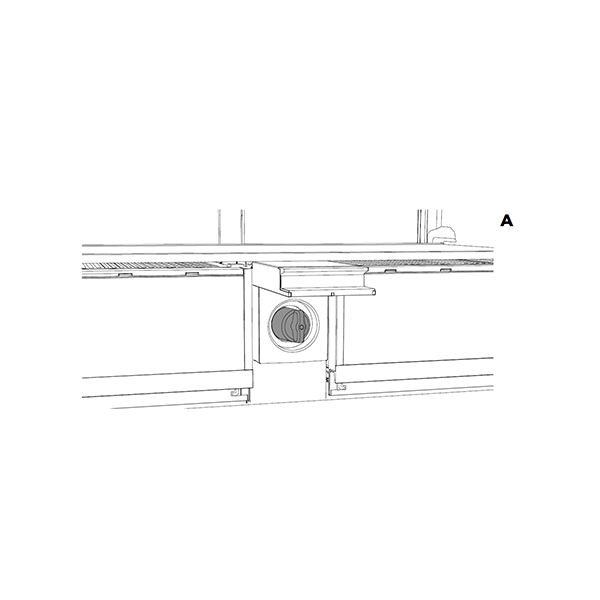

  1. Locate the filter hatch between the two produce bins inside the fresh food compartment. Lift the hatch to access the filter tool ( A )

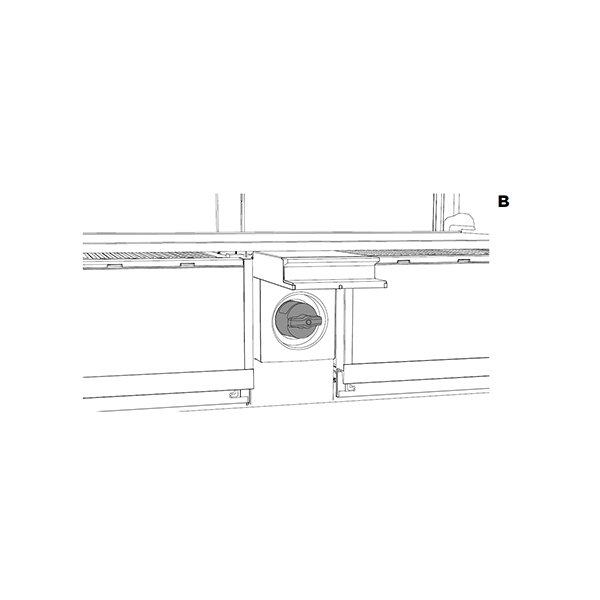

diagram showing the alignment of a water filter to a filter head

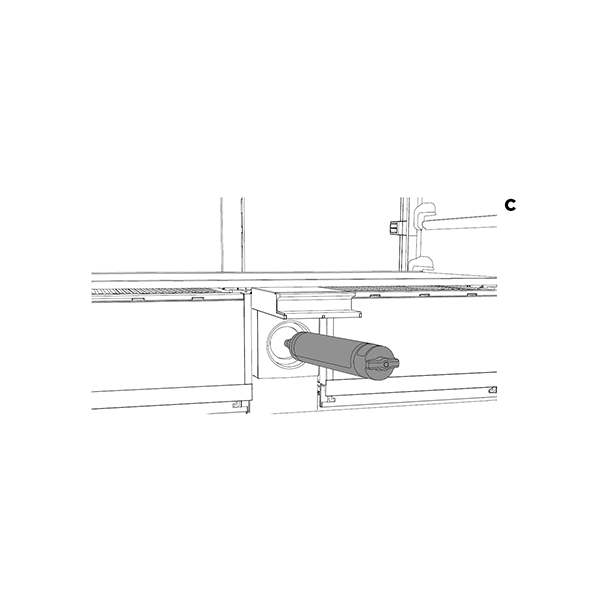

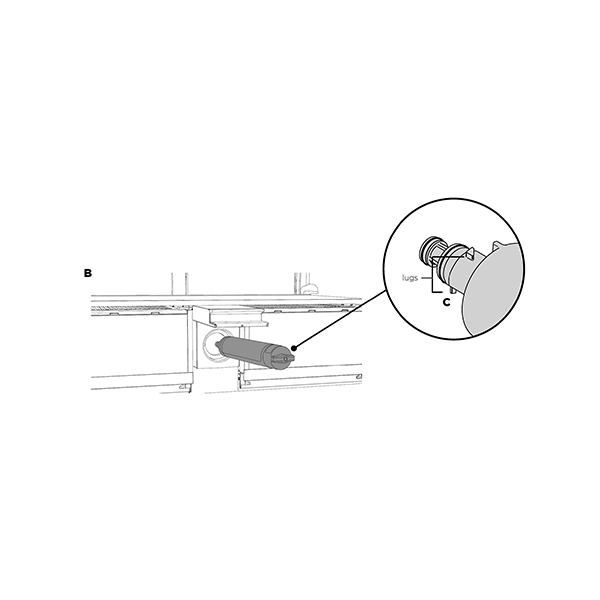

  1. Align the filter correctly ( B ). Insert the filter into the filter housing until the tool is flush and in the unlock position ( C )
diagram showing an inserted filter
  1. Push the filter firmly in and rotate clockwise 90° into the lock position ( D ) to allow water to flow.
    • If the filter will not turn, ensure the filter is correctly aligned ( C ) to allow the filter to be pushed firmly into the filter head.
diagram with filter inserted and rotated to lock into place
  1. Close the filter hatch.

IMPORTANT!
After installation, the water filter MUST be flushed. Refer to flushing the water filter for more details.

For RF730Q Models with Filter Tool

Removing the old filter

Note: It is not necessary to turn the water supply off when installing the water filter. It is easier to remove the water filter with the water turned on.

diagram showing the location of the water filter hatch.

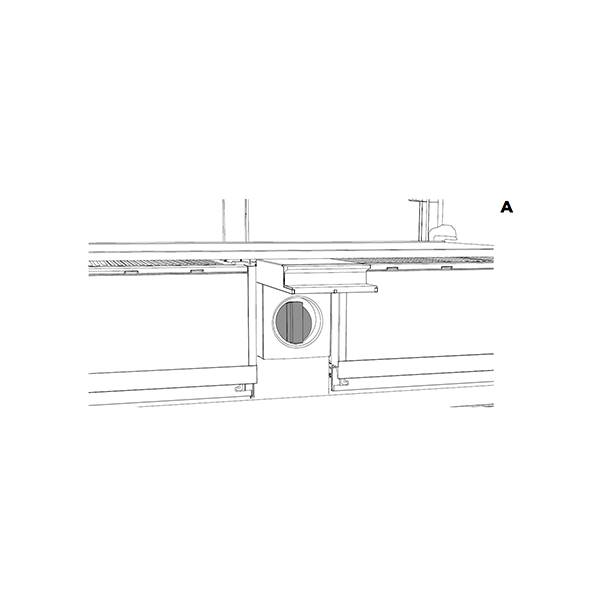

  1. Locate the filter hatch between the two produce bins inside the fresh food compartment. Lift the hatch to access the filter tool ( A )
diagram showing the water filter rotated counterclockwise.
  1. Turn the filter tool 90° counterclockwise to the unlock position ( B ).
diagram showing the removal of a water filter.

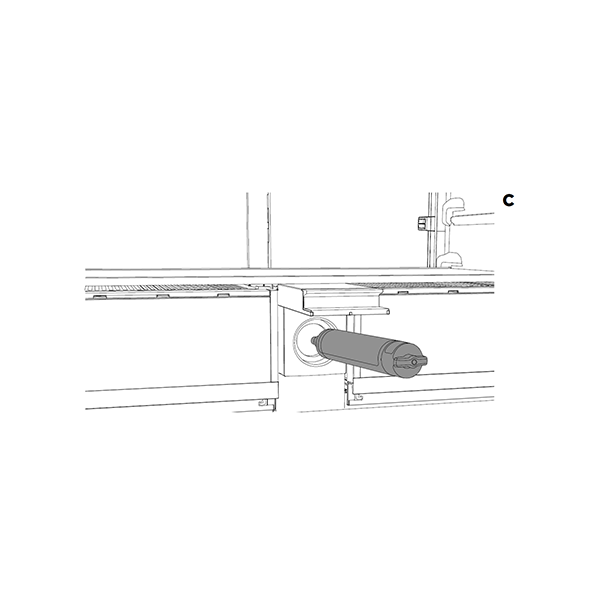

  1. Pull out the filter from the filter casing. Discard the old filter ( C ).
    • If you have difficulty removing the filter, an additional tool may be required e.g. pliers (not supplied).
diagram showing the water filter hatch and tool.
  1. Return the filter tool to its storage position and close the filter hatch.

Installing the new filter

Note: It is not necessary to turn the water supply off when installing the water filter.

diagram the location of the water filter hatch.

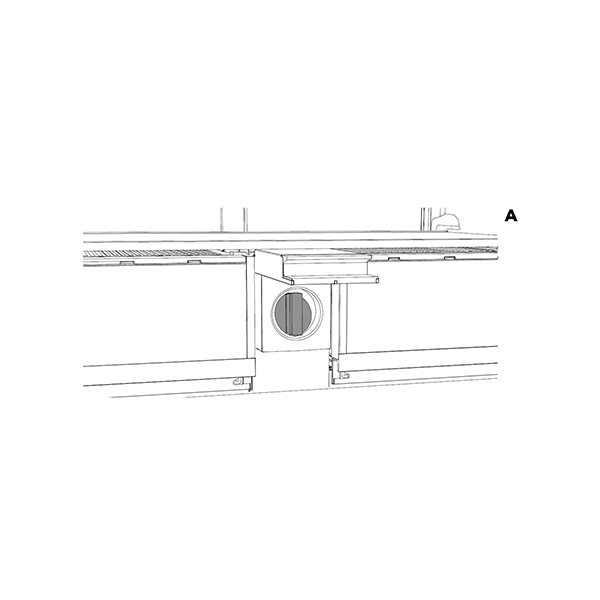

  1. Locate the filter hatch between the two produce bins inside the fresh food compartment. Lift the hatch to access the filter tool ( A )
diagram a water filter with the tool attachment.
  1. Remove the plastic wrapping from the new filter.

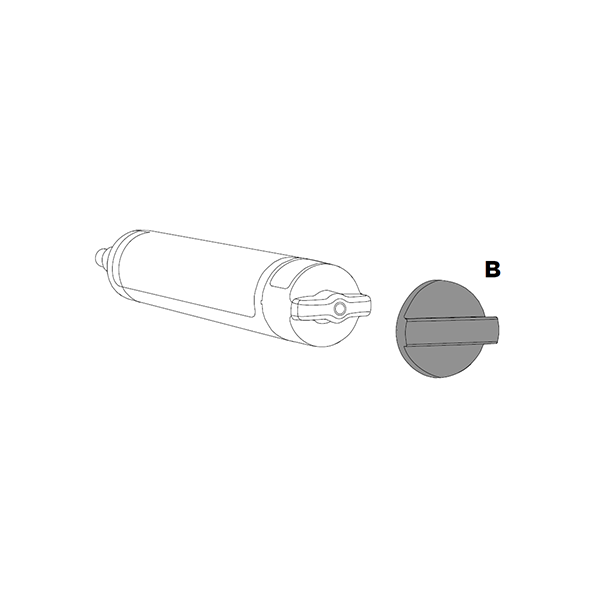

  2. Place the filter tool on the filter handle ( B ).
diagram showing correct alignment of the water filter to the filter housing.

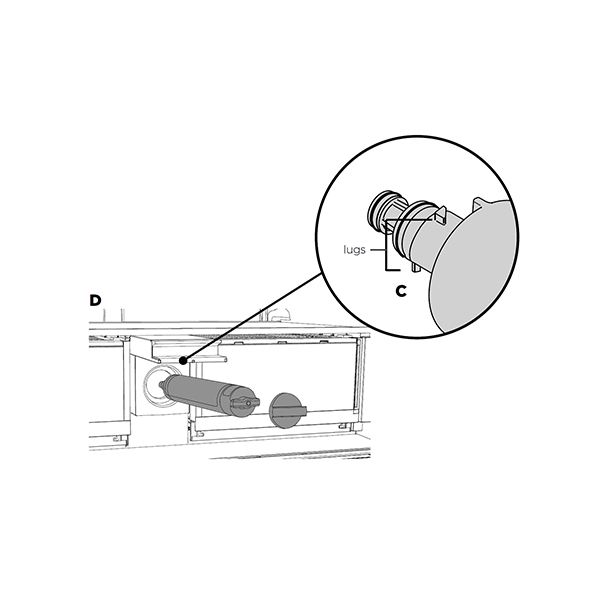

  1. Align the filter correctly ( C ). Insert the filter into the filter housing until the tool is flush and in the unlock position ( D ).
diagram showing an inserted water filter with the hatch open.
  1. Push the filter firmly in and rotate clockwise 90° into the lock position ( E ) to allow water to flow.
    • If the filter will not turn, ensure the filter is correctly aligned, ( C ) to allow the filter to be pushed firmly into the filter head.

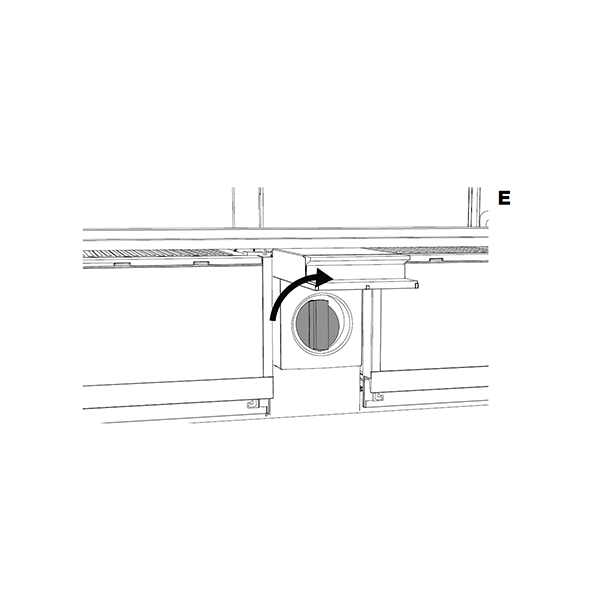

diagram of a closed water filter hatch.
  1. Close the filter hatch.

IMPORTANT!
After installation, the water filter MUST be flushed. Refer to flushing the water filter for more details.

Integrated Column Refrigerators And Freezers

Removing the old filter

Note: It is not necessary to turn the water supply off when removing the water filter. It is easier to remove the water filter with the water turned on.

diagram showing a close up of an integrated column refrigerators filter hatch

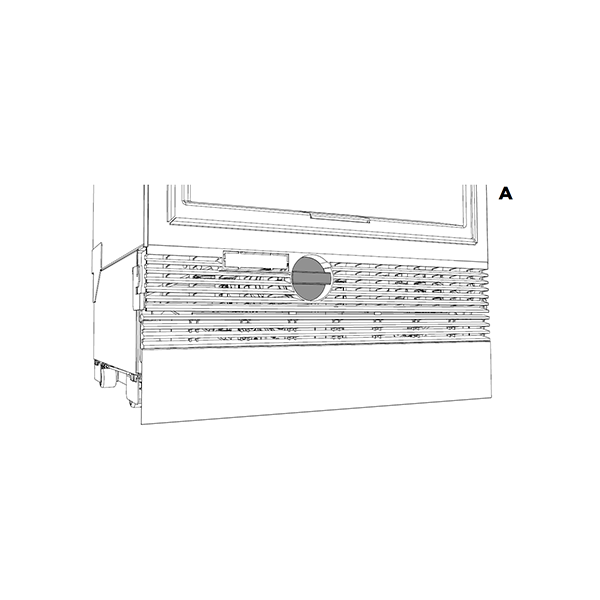

  1. Open the water filter hatch to access the filter ( A )
  2. Press the hatch then pull the hatch down ( B ).
diagram showing how to remove a filter tool
  1. Pull the filter tool gently to dislodge from the front of the appliance ( C ).
diagram showing the filter tool in use

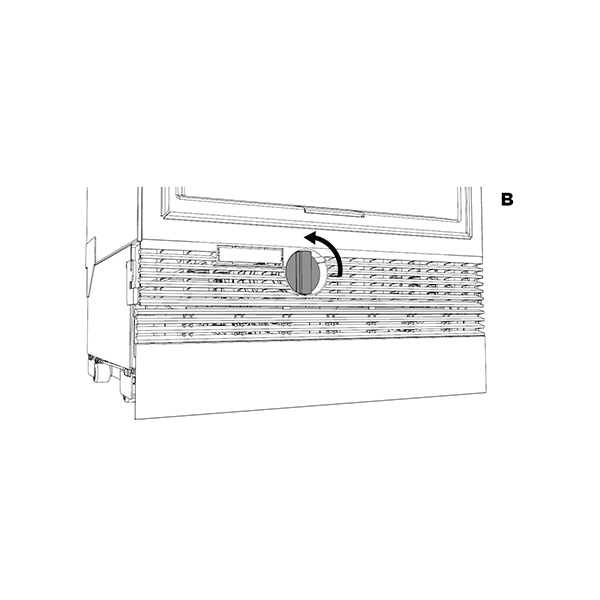

  1. Using the filter tool, rotate the filter head 90° counterclockwise to release ( D ).
diagram showing the removal of a water filter

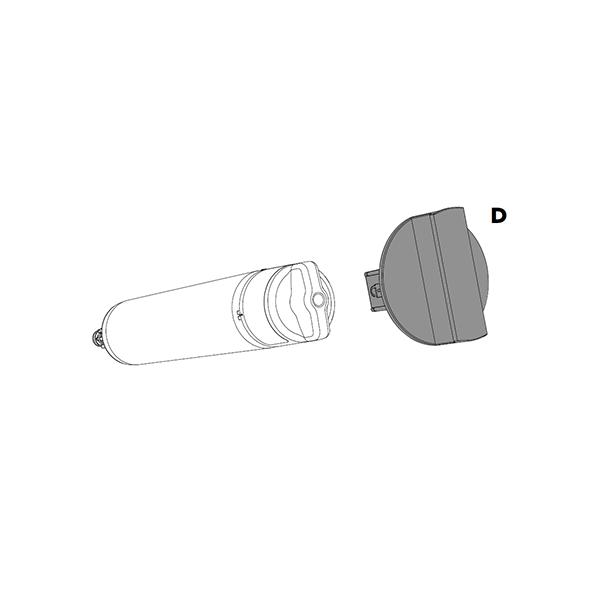

  1. Pull out the filter from the filter casing ( E ). Discard the old filter.
    • If the filter is difficult to remove, run water through the filter by using the automatic ice maker. Refer to the user guide for your appliance for further details.

Installing the new filter

Note: It is not necessary to turn the water supply off when installing the water filter.

diagram showing a close up of an integrated column refrigerators filter hatch
  1. Remove the plastic wrapping from the new filter.
  2. Open the water filter hatch to access the filter ( A ) and press the hatch then pull the hatch down ( B ).
diagram showing how to remove a filter tool
  1. Pull the filter tool gently to dislodge from the front of the appliance ( C ).
diagram showing the alignment of a water filters lugs
  1. Align the filter correctly, ensure the filter handle is positioned vertically ( D ) and the lugs are aligned correctly ( E ).
  2. Push the filter firmly inside the casing all the way into the filter head ( F ).
diagram showing a water filter tool in use
  1. Using the filter tool, rotate the filter head clockwise 90° to lock in place ( G ).
    • If the filter will not turn, ensure the filter is correctly aligned ( D & E ), to allow the filter to be pushed firmly into the filter head.
    • Ensure the filter is fully rotated 90° to allow the water to flow.
diagram showing where to return a water filter tool
  1. Return the filter tool to its storage position ( H )

IMPORTANT!
After installation, the water filter MUST be flushed. Refer to flushing the water filter for more details.

For Integrated Column Refrigerator Freezer Models

Removing the old filter

Note: It is not necessary to turn the water supply off when removing the water filter. It is easier to remove the water filter with the water turned on. The filter can be accessed from the side of the drawer.

diagram showing the location of the water filter tool.
  1. Open the freezer drawer to access the filter tool in the middle of the grille ( A )
diagram showing the water filter tool rotating.
  1. Rotate the filter tool 90° counterclockwise to release ( B ).
diagram showing the water filter tool being removed.

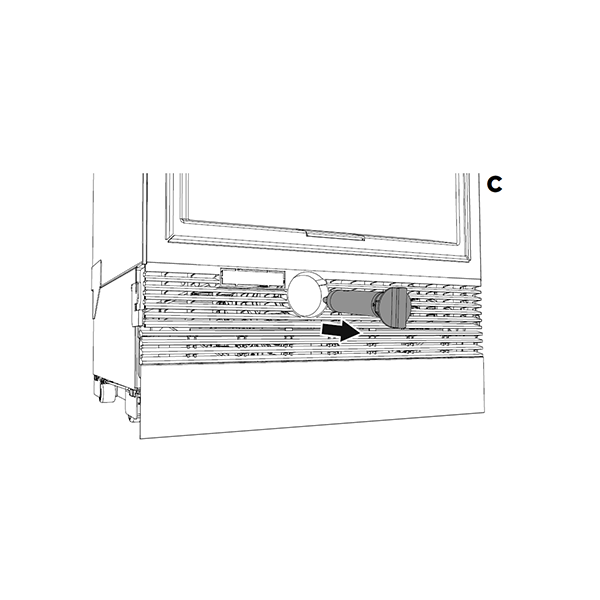

  1. Pull out the filter tool and filter from the filter casing. If the filter is difficult to remove, run water by using the water dispenser. Refer to the user guide for your appliance for further details. ( C ).
diagram showing a water filter with the tool detached.

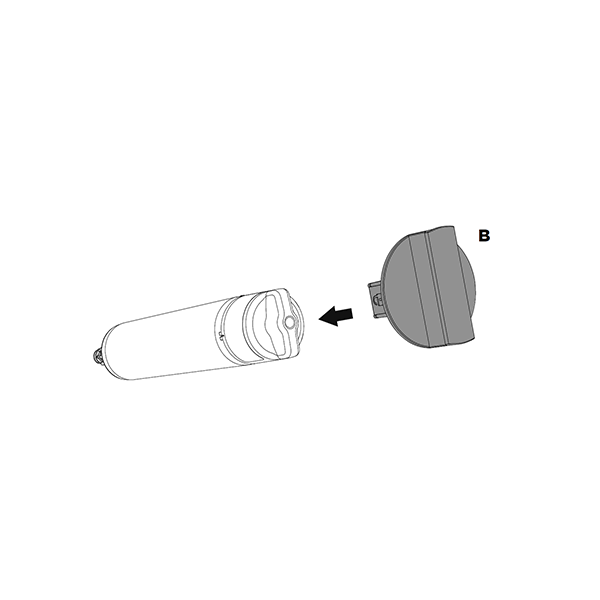

  1. Remove the filter tool from the filter handle. Discard the old filter ( D ).
diagram showing the location of the water filter tool.
  1. Return the tool to its storage position.

Installing the new filter

Note: It is not necessary to turn the water supply off when installing the water filter.

diagram showing the location of the water filter tool.
  1. Remove the plastic wrapping from the new filter.
  2. Open the freezer drawer to access the filter tool in the middle of the grille ( A )
diagram showing a water filter with tool being attached.
  1. Pull the filter tool gently to dislodge from the front of the appliance ( B ). Place the tool on the filter handle.

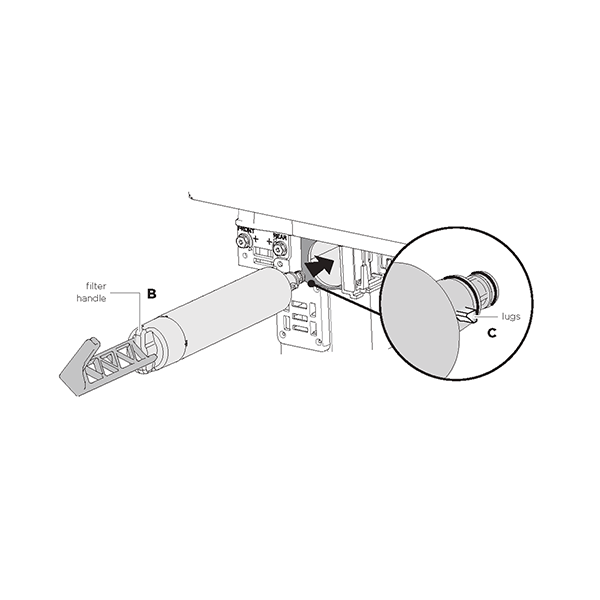

diagram showing the correct alignment of the lugs on the water filter, and being inserted back into the casing.
  1. Align the filter correctly, ensure the filter tool is positioned vertically ( C ) and the lugs are aligned correctly ( D ). Push the filter inside the casing all the way and rotate the filter tool until it fits in place.
diagram showing the water filter tool being rotated to lock into place.
  1. Using the filter tool, rotate the filter head clockwise 90° to lock in place ( E ).
    • If the filter will not turn, ensure the filter is correctly aligned, to allow the filter to be pushed firmly into the filter head.
    • Ensure the filter is fully rotated 90° to allow the water to flow

IMPORTANT!
After installation, the water filter MUST be flushed. Refer to flushing the water filter for more details.

For RS60 Models

Removing the old filter

Note: It is not necessary to turn the water supply off when installing the water filter. It is easier to remove the water filter with the water turned on.

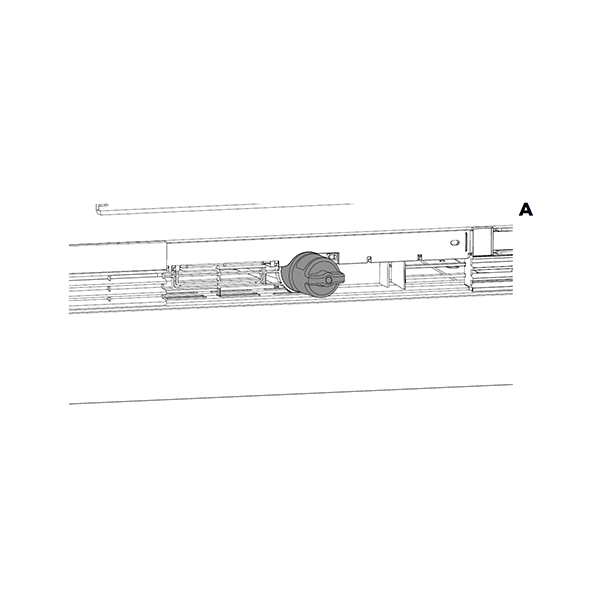

diagram showing the location of the water filter.

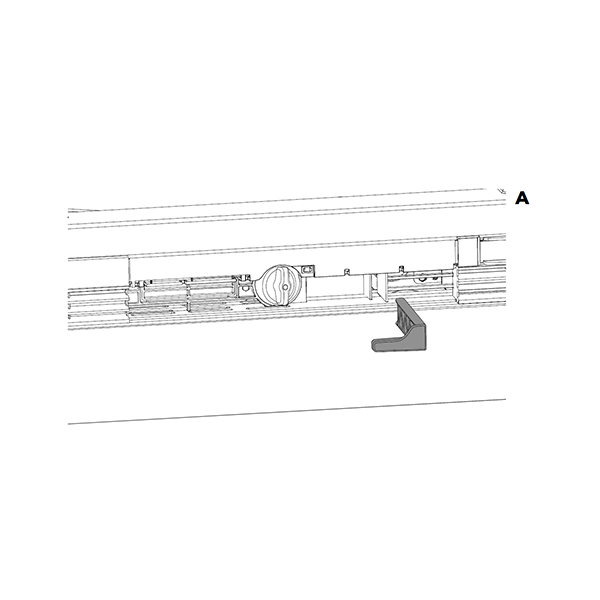

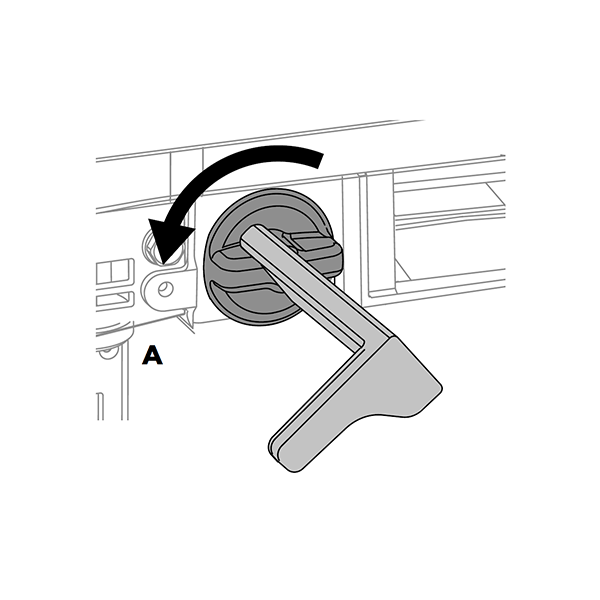

  1. Push grille flap to access filter. Pull tool outwards to remove ( A )
diagram showing the water filter tool being rotated to unlock the filter.
  1. Using the filter tool, rotate filter 90° anti-clockwise to unlock and remove ( B ).
    • If you have difficulty removing the filter, an additional tool may be required e.g. pliers (not supplied).

Installing the new filter

Note: It is not necessary to turn the water supply off when installing the water filter.

diagram showing the water filter being inserted.
  1. Remove packaging. Ensure filter handle is positioned horizontally and push all the way in. Rotate clockwise to lock into place ( A ).
diagram showing the water filter rotating to lock.

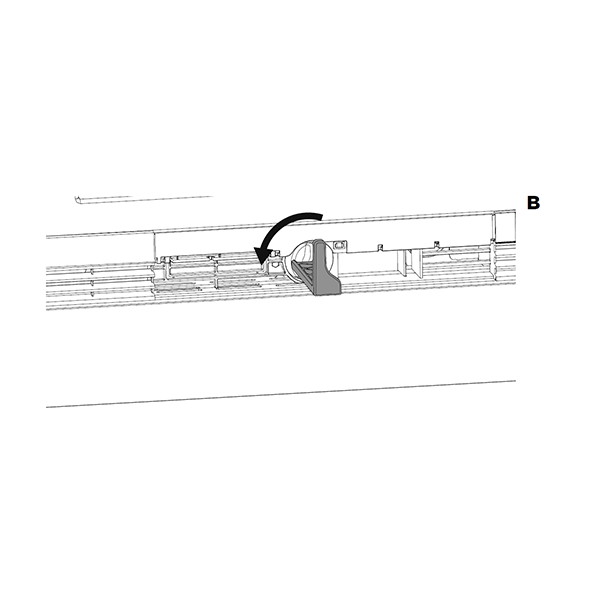

  1. Slot tool into place and push to close the grille flap ( B ).

IMPORTANT!
After installation, the water filter MUST be flushed. Refer to flushing the water filter for more details.

Integrated French Door Refrigerator Freezer

Removing the old filter

Note: It is not necessary to turn the water supply off when removing the water filter. It is easier to remove the water filter with the water turned on.

The filter is located behind the toe kick grille.

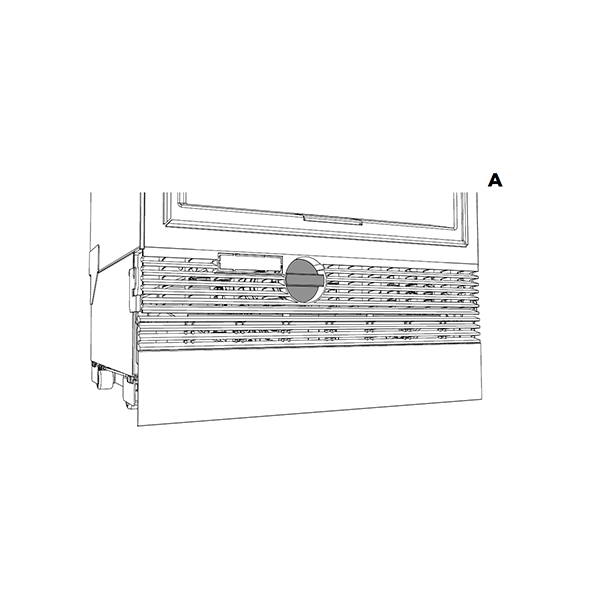

  1. Remove toe kick grille by inserting fingers into the left and right square openings on the grille. Pull towards you.
  2. Pull the freezer drawer out slightly, the filter is located on the left-hand side.

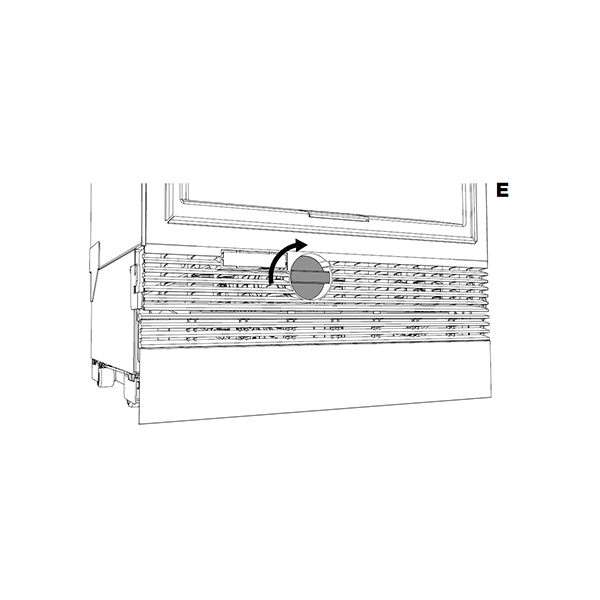

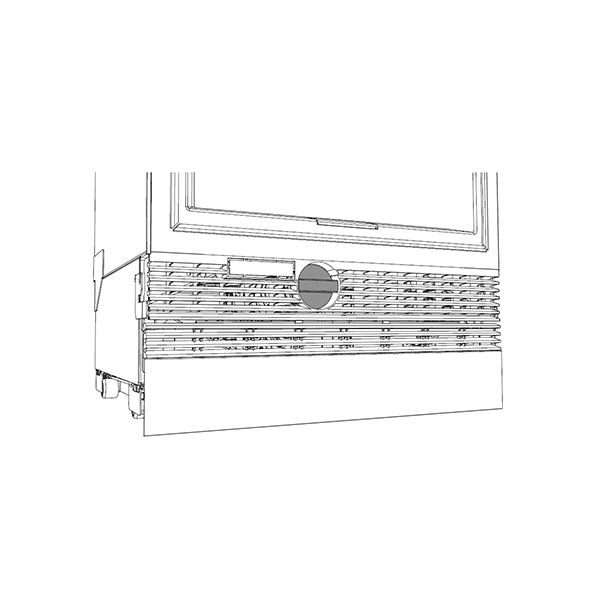

diagram showing a water filter tool in use
  1. Using the filter removal tool, align the tool to the cartridge handle and turn 90° counterclockwise to loosen ( A ).
  2. Remove the tool, grasp firmly onto the cartridge handle and pull towards you to remove.
  3. Discard the old filter.
    • If the filter is difficult to remove, run water through the filter by dispensing water or using the automatic ice maker.
    • A small amount of water will drip after your remove the filter. This is normal.

Installing the new filter

Note: It is not necessary to turn the water supply off when removing the water filter.

diagram showing the correct alignment of a water filters lugs
  1. Remove the plastic wrapping from the new filter.
  2. Remove toe kick grille by inserting fingers into the left and right square openings on the grille. Pull grille towards you.
  3. Pull the freezer drawer out slightly to access the filter casing. Align the filter correctly, ensure the filter handle is positioned vertically ( B ) and the lugs are aligned correctly ( C ).
  4. Push the filter firmly inside the casing all the way into the filter head.
diagram showing a water filter that has been locked in place
  1. Using the filter tool, rotate the filter head clockwise 90° to lock in place ( D ).
    • If the filter will not turn, ensure the filter is correctly aligned ( B & C ), to allow the filter to be pushed firmly into the filter head.
  2. Remove filter removal tool and close the freezer drawer.

IMPORTANT!
After installation, the water filter MUST be flushed. Refer to flushing the water filter for more details.

WATER FILTER FLUSHING INSTRUCTIONS (All Models)

Flushing the water filter

For optimal performance, there is a requirement to flush 8L (2 gal) of water through your new water filter before use.

For models with water dispensers:

Flushing must be completed through both the water dispenser and ice maker.

For models with ice makers only:

Flushing must be completed through the ice maker.

For some models, a safety lockout feature may activate during the flushing of your water filter. If this occurs, wait a few minutes before dispensing again. For flushing information for your specific model, refer to your products User Guide.

Resetting the filter indicator

Use the water filter as soon as possible after installation. A replacement indicator on the control panel and/or external display illuminates when you need to replace the filter. Reset the indicator only after replacing the filter.

To reset indicator

  • Press   and  together for 4 seconds
  • The   on the control panel will turn off when reset
  • The filter change indicator icon   on the control panel and/or external display will turn off when reset

IMPORTANT!
We recommend the water filter to be used from the time of installation. Do not reset indicator before filter is changed or filter monitoring will be innacurate.

Safety and Warning

IMPORTANT!

  • The water connection to your ice & water refrigerator must be installed by a qualified plumber or Fisher & Paykel trained and supported service technician and comply with all state and local laws.
  • Installation and use MUST comply with all state and local plumbing codes. Check with your local public works department for plumbing codes. You must follow their guidelines as you install the water filtration system.
  • To avoid serious illness or death, only connect your water filter to safe drinking water.
  • The water filter cartridge needs to be changed when the replacement indicator icon illuminates. This will happen every 6 months.
  • If the water filtration system has been allowed to freeze, replace filter cartridge. Failure to replace the disposable filter at recommended intervals may lead to reduced filter performance and failure of the filter, causing property damage from water leakage or flooding.
  • In cases of excessively reduced filter life — we recommend that you consult a local plumber or your water supplier for advice on suitable filtration requirements for the water supplied to your home.
  • Filter replacement is the consumer's responsibility and will not be covered by the warranty except in the case of faulty parts or materials within the filter cartridge.
  • If the water has not created ice for some time or ice has an unpleasant taste or odor dispose of ice and refer to the flushing instructions in this book. If unpleasant taste or odor persists, you may wish to fit a new filter cartridge.
  • Your water filtration system can withstand up to 120psi (827kPa) of water pressure. Ensure the supplied pressure reducing valve is installed before installing the water filtration system. DO NOT install if water pressure exceeds 120psi (827kPa). To reduce the risk associated with property damage due to water leakage or flooding:
  • DO NOT install systems in areas where ambient temperatures may go above 100°F (38°C) or drop below 33°F (0.6°C).
  • DO NOT install on hot water supply lines. The maximum operating water temperature of this filter system is 100°F (38°C).
  • DO NOT install where water hammer conditions may occur. If water hammer conditions exist, you must install a water hammer arrester.

847200 – Certified by: IAPMO R&T against NSF/ANSI Standards 43, 53, 401 and CSA B4831.1 for the reduction of claims specified on the performance data sheet and at iapmort.org. 847200 compounds certified under NSF/ANSI 401 have been deemed as incidental contaminants/emerging compounds. Incidental contaminants are those compounds that have been detected in drinking water supplies at trace levels. While occurring at only trace levels, these compounds can affect the public acceptance of drinking quality water.

847201 – Certified by: IAPMO R&T against NSF/ANSI Standards 43 and CSA B4831.1 for the reduction of claims specified on the performance data sheet and at iapmort.org.

Rated capacity

847200 – 102 gallons (386 litres) 847201 – 170 gallons (643 litres)

Flow rate

0.5 gpm (1.89 Lpm)

Replacement filter cartridges can be purchased online at fisherpaykel.com or by calling Fisher & Paykel Customer Care. Details of the replacement filter cartridge are labelled on the cartridge.

Office address

Fisher & Paykel Appliances, 695 Town Center Drive Suite 180, Costa Mesa, CA 92626

Customer Care

You can talk with a support member now using the 'Live Chat' button on this page. Alternatively, call us on 1 888 936 7872
